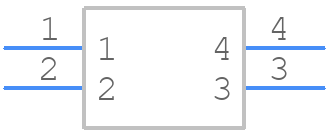

PLA10AN1030R7R2B - Murata Electronics

PLA10AN1030R7R2B Frequently Asked Questions (FAQs)

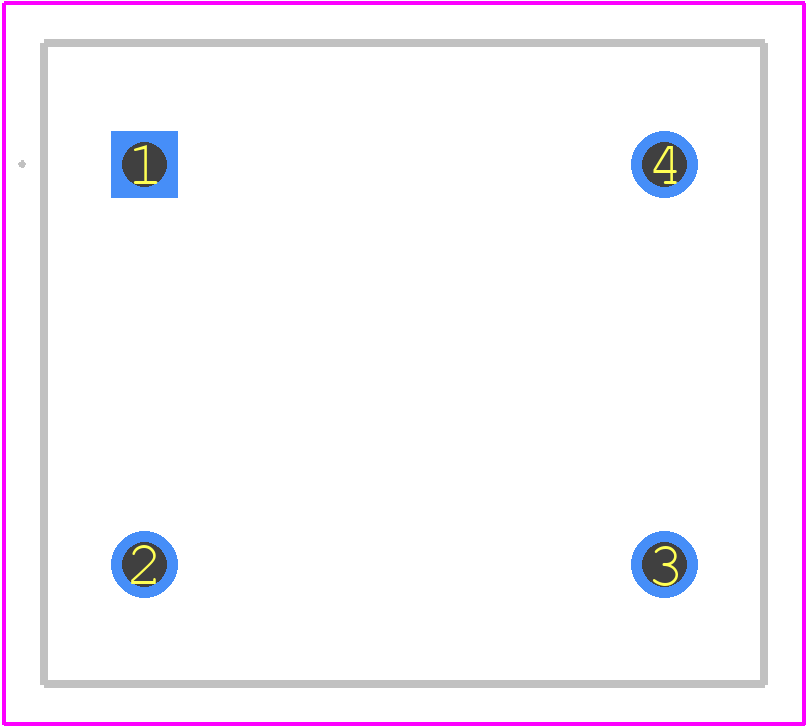

• What is the recommended land pattern for this capacitor?
  The recommended land pattern for the PLA10AN1030R7R2B can be found in the Murata Land Pattern document, which provides guidelines for PCB layout and pad design to ensure reliable mounting and soldering.
• How does the capacitor's ESR affect its performance in high-frequency circuits?
  The ESR (Equivalent Series Resistance) of the PLA10AN1030R7R2B is relatively low, which makes it suitable for high-frequency applications. However, it's essential to consider the ESR in the circuit design to ensure optimal performance and minimize energy losses.
• Can I use this capacitor in a high-temperature environment?
  The PLA10AN1030R7R2B is rated for operation up to 125°C, but its capacitance and ESR may change with temperature. It's essential to consider the temperature coefficient and derating factors when designing for high-temperature applications.
• How do I handle the capacitor's moisture sensitivity during storage and assembly?
  The PLA10AN1030R7R2B is a moisture-sensitive device. It's essential to follow the recommended storage and handling procedures, such as storing the components in a dry environment and using a dry pack or desiccant to control humidity during assembly.
• What are the reliability and lifespan expectations for this capacitor?
  The PLA10AN1030R7R2B is designed to meet the reliability standards of Murata Manufacturing Co Ltd. The capacitor's lifespan is dependent on various factors, including operating conditions, temperature, and voltage. Refer to the datasheet and reliability reports for more information.
