A good PCB layout for PLA140S involves keeping the leads as short as possible, using a solid ground plane, and minimizing the distance between the device and the fuse. Additionally, ensure that the PCB material has a high thermal conductivity to dissipate heat efficiently.
PLA140S is designed to operate up to 125°C, but its performance may degrade above 100°C. It's essential to consider derating the device's current rating and ensuring proper heat sinking to maintain reliability in high-temperature environments.
While PLA140S is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 100 kHz. However, the device's performance may be affected by skin effect and proximity effect, so careful evaluation and testing are necessary.
Littelfuse recommends using a fast-acting fuse with a rating of 1-2A, depending on the specific application requirements. The fuse should be selected based on the maximum expected current and the device's power rating.
PLA140S is designed to withstand overvoltage conditions up to 1.5 times the rated voltage for a short duration. However, prolonged exposure to overvoltage can lead to device degradation or failure. It's essential to implement overvoltage protection mechanisms in the system design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PLA140S Overview

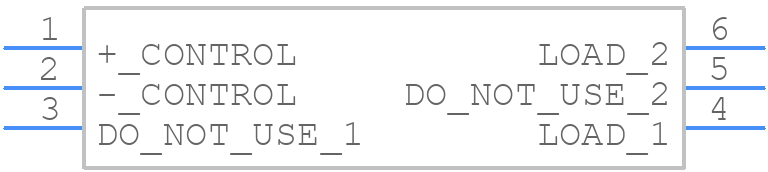

Use the download button to access the PLA140S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLA14,
or try a keyword search, such as Solid State Relays
