A good PCB layout for the PLB171PTR should ensure that the input and output pins are separated by a sufficient distance to minimize electromagnetic interference (EMI). Additionally, the PCB should have a solid ground plane and use a low-impedance path for the return current. It's also recommended to use a ferrite bead or a common-mode choke to filter out high-frequency noise.
To select the correct fuse rating, you need to consider the maximum current rating of your circuit, the voltage rating, and the fault current rating. You should also consider the ambient temperature, the type of load, and the desired response time. Littelfuse provides a fuse selection guide that can help you determine the correct fuse rating for your specific application.
The PLB171PTR has an operating temperature range of -40°C to 125°C. However, the fuse's performance and reliability may be affected at extreme temperatures. It's recommended to derate the fuse's current rating at high temperatures to ensure reliable operation.
Yes, the PLB171PTR is designed to withstand high-vibration environments. However, it's essential to ensure that the PCB is properly secured and that the fuse is mounted securely to prevent damage or dislodging. You should also consider the vibration frequency and amplitude to ensure that the fuse's performance is not affected.
To troubleshoot issues with the PLB171PTR, start by checking the fuse's integrity and ensuring that it's properly mounted on the PCB. Check for signs of overheating, corrosion, or physical damage. Use a multimeter to measure the voltage and current at the input and output pins. If the issue persists, consult the datasheet and application notes or contact Littelfuse's technical support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PLB171PTR Overview

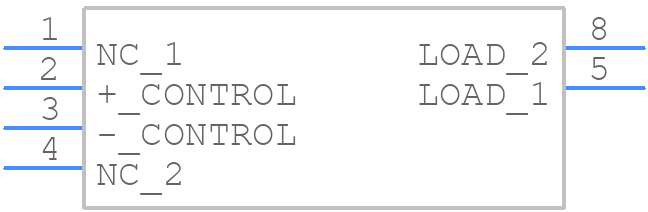

Use the download button to access the PLB171PTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLB17,
or try a keyword search, such as Solid State Relays
