Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the PLL circuitry away from high-frequency signals and noise sources. Additionally, use short and wide traces for the power supply and ground connections, and avoid vias under the device.
Use the PLL1705DBQR Loop Filter Calculator tool provided by Texas Instruments to determine the optimal values for your specific application. The tool takes into account the desired loop bandwidth, phase margin, and other parameters to provide recommended component values.
The PLL1705DBQR can handle input frequencies up to 350 MHz. However, the maximum input frequency may be limited by the specific application and the quality of the input signal.
Use a low-ESR capacitor (e.g., 0.1 μF) connected between the VCC pin and the GND pin, and a 10 μF capacitor connected between the VCC pin and the GND pin for decoupling. Additionally, ensure that the power supply is clean and well-regulated, and that the device is operated within the recommended voltage range (2.97 V to 3.63 V).
The typical lock time for the PLL1705DBQR is around 1 ms to 2 ms. To optimize the lock time, ensure that the input signal is clean and stable, and that the loop filter components are properly selected. Additionally, consider using a faster lock time mode (e.g., Fast Lock mode) if available, and optimize the PLL settings for your specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PLL1705DBQR Overview

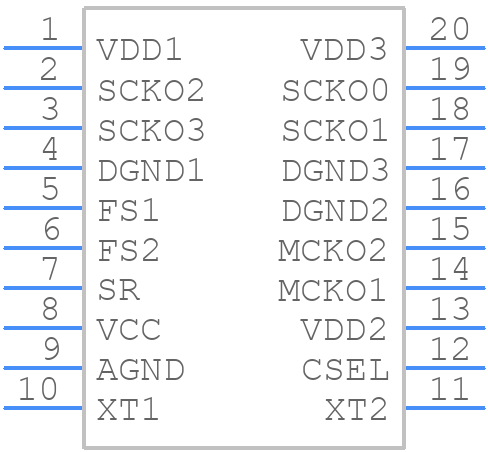

Use the download button to access the PLL1705DBQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLL17,
or try a keyword search, such as Clock Generators
