PLL1706DBQ - Texas Instruments

Description: 3.3 V Dual PLL Multi-Clock Generator

Download PLL1706DBQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

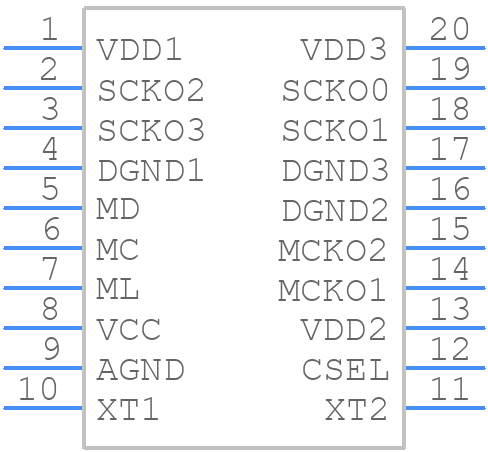

PLL1706DBQ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PLL1706DBQ - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ (R-PDSO-G20)_1
click to zoom
3D Models
PLL1706DBQ - Texas Instruments - 3D model - Small Outline Packages - DBQ (R-PDSO-G20)_1
click to zoom

PLL1706DBQ Details

  • Manufacturer Part Number:

    PLL1706DBQ

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Clock Frequency-Max:

    0.096 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    27 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, VIDEO

PLL1706DBQ Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the PLL circuitry away from noisy components. Additionally, use short traces, and avoid vias and right-angle bends in the signal paths.
  • Use the PLL1706DBQ calculator tool or consult the application note (SLVA466) to determine the optimal values for the loop filter components based on the desired frequency range, phase noise, and loop bandwidth.
  • The PLL1706DBQ can handle input frequencies up to 1.6 GHz, but the maximum frequency is dependent on the specific application and the quality of the input signal.
  • Use a low-noise power supply, and decouple the PLL1706DBQ with a 10nF capacitor between VCC and GND, and a 100nF capacitor between VCCA and GND. Additionally, use a separate power plane for the PLL circuitry.
  • The typical lock time for the PLL1706DBQ is around 1-2 ms, but it can be optimized by adjusting the loop filter components, using a faster lock detect circuit, and ensuring a clean and stable input signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PLL1706DBQ Overview

Use the download button to access the PLL1706DBQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLL17, or try a keyword search, such as Clock Generators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
