Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the PLL circuitry away from high-frequency signals and noise sources. Additionally, use short traces, and avoid vias and right-angle turns in the signal paths.
Use the PLL1708DBQR's datasheet equations and graphs to determine the optimal values for the loop filter components based on the desired loop bandwidth, phase margin, and damping factor. You can also use TI's PLL Loop Filter Calculator tool to simplify the process.
The PLL1708DBQR can handle input frequencies up to 350 MHz, but the maximum frequency is dependent on the specific application and the quality of the input signal. It's recommended to consult the datasheet and application notes for more information.
The PLL1708DBQR requires a single 3.3V or 2.5V power supply, and it's recommended to use a low-noise, high-PSRR power supply to minimize jitter and ensure optimal performance. Decouple the power pins with 0.1uF and 10uF capacitors, and ensure the power supply can provide the required current.
The typical lock time for the PLL1708DBQR is around 1-2ms, but it can vary depending on the input frequency, loop bandwidth, and other factors. To optimize the lock time, use a narrow loop bandwidth, ensure a clean input signal, and adjust the loop filter components accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PLL1708DBQR Overview

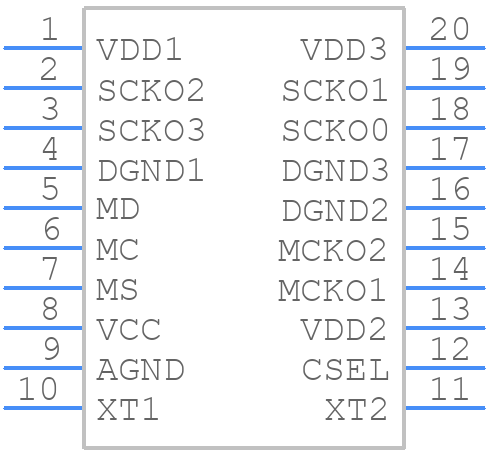

Use the download button to access the PLL1708DBQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLL17,
or try a keyword search, such as Clock Generators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
