PLM61495QRPHRQ1 - Texas Instruments

Description: 10-A automotive buck converter optimized for power density and low EMI 16-VQFN-HR -40 to 150

Download PLM61495QRPHRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

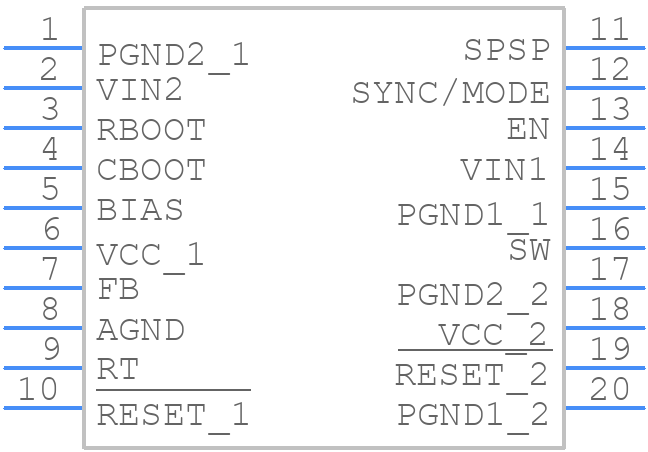

PLM61495QRPHRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PLM61495QRPHRQ1 - Texas Instruments PCB footprint - Other - Other - RPH0016A_1H
click to zoom
3D Models
PLM61495QRPHRQ1 - Texas Instruments - 3D model - Other - RPH0016A_1H
click to zoom

PLM61495QRPHRQ1 Details

  • Manufacturer Part Number:

    PLM61495QRPHRQ1

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VQCCN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-02-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N16

  • Length:

    4.5 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    10 A

  • Output Voltage-Max:

    34.2 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.14X.18

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    3.5 mm

PLM61495QRPHRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure that the thermal pad is connected to a large copper area to dissipate heat effectively.
  • Choose an output capacitor with low ESR (Equivalent Series Resistance) and a voltage rating that exceeds the output voltage. A 10uF to 22uF ceramic capacitor is a good starting point. Consider the capacitor's temperature coefficient and ripple current rating as well.
  • A 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric is recommended. The input capacitor should be placed close to the VIN pin to minimize noise and ensure stable operation.
  • Ensure that the input voltage (VIN) is stable and within the recommended range before enabling the device. Use a soft-start circuit or a power-on reset (POR) circuit to ensure a controlled startup sequence.
  • The device's thermal pad should be connected to a large copper area on the PCB to dissipate heat. Use thermal vias to connect the thermal pad to the copper area. Ensure good airflow and consider using a heat sink or thermal interface material if the device will operate in high-temperature environments.
