Texas Instruments provides a recommended PCB layout and thermal management guide in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and to prevent overheating.
The PLM63625DQB1DRRQ1 has a specific power sequencing requirement. Texas Instruments recommends using an external power sequencer or a dedicated power management IC to ensure proper power-up and power-down sequencing. Additionally, voltage monitoring can be implemented using external voltage supervisors or monitoring ICs.
The recommended input and output capacitors for the PLM63625DQB1DRRQ1 are typically specified in the datasheet or application notes. However, as a general guideline, use low-ESR capacitors with a minimum capacitance of 10uF for input and output filtering. The specific capacitor values may vary depending on the application and operating conditions.
To troubleshoot common issues like output voltage sag or oscillations, start by verifying the PCB layout, component selection, and soldering quality. Check for any signs of overheating, and ensure that the input voltage and current are within the recommended specifications. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult the datasheet, application notes, and Texas Instruments' support resources for guidance.
The thermal design and heat sink requirements for the PLM63625DQB1DRRQ1 are critical for optimal performance and reliability. Texas Instruments provides thermal design guidelines and heat sink recommendations in their application notes and datasheet. Ensure that the heat sink is properly sized and attached to the device to maintain a safe operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PLM63625DQB1DRRQ1 Overview

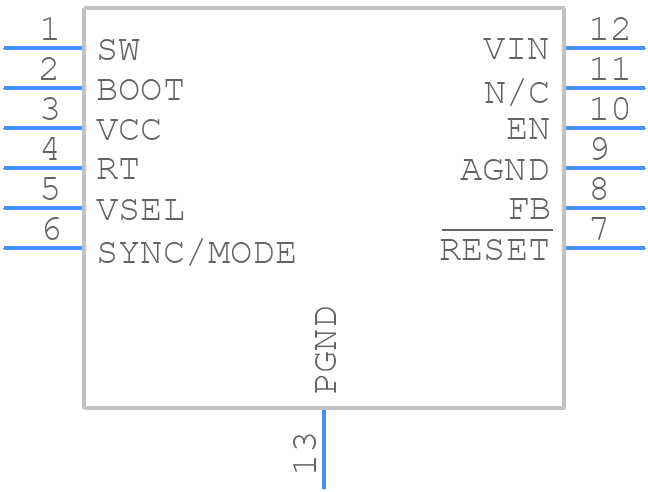

Use the download button to access the PLM63625DQB1DRRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLM63,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
