PLM76005RNPRQ1 - Texas Instruments

Description: 3.5-V to 60-V, 5-A synchronous voltage regulator

Download PLM76005RNPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

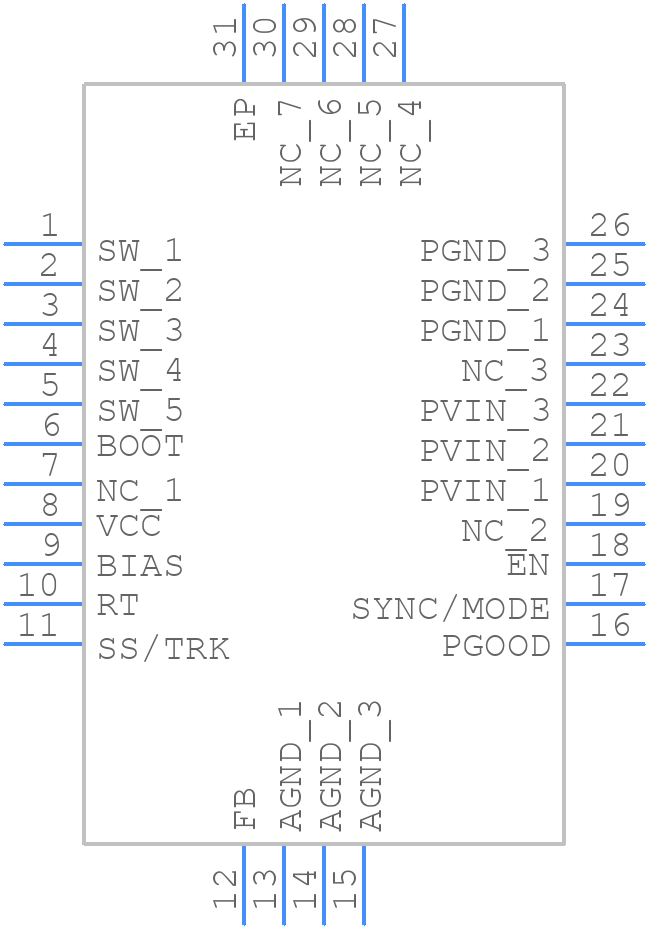

PLM76005RNPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PLM76005RNPRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RNP0030A wqfn
click to zoom
3D Models
PLM76005RNPRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RNP0030A wqfn
click to zoom

PLM76005RNPRQ1 Details

  • Manufacturer Part Number:

    PLM76005RNPRQ1

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    WQFN-30

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-02-16

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    ALSO HAS PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PQCC-N30

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    57 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC30,.16X.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    500 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

PLM76005RNPRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guide in their application notes (SLVAE03) and evaluation module documentation (PLM76005EVM). It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and reduced electromagnetic interference (EMI).
  • The selection of input and output capacitors depends on the specific application requirements, such as output voltage, current, and ripple. Texas Instruments recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output. Refer to the datasheet and application notes for more detailed guidance.
  • The maximum ambient temperature for reliable operation is 85°C. As the ambient temperature increases, the device's performance may degrade, and the output voltage may drop. It's essential to ensure proper thermal management and consider derating the device's performance at higher temperatures.
  • The PLM76005RNPRQ1 has built-in overcurrent protection, but it's recommended to add external protection circuits to ensure reliable operation. Texas Instruments provides guidance on implementing overcurrent protection and short-circuit protection in their application notes and evaluation module documentation.
  • The recommended startup sequence is to power up the input voltage (VIN) first, followed by the enable pin (EN). Ensure that the input voltage is stable before enabling the device. Refer to the datasheet and application notes for more detailed information on power sequencing.
