Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and keeping sensitive analog signals away from digital signals.
To ensure accurate voltage regulation, it's crucial to follow the recommended input and output capacitor values, as well as the suggested PCB layout. Additionally, ensure that the input voltage is within the specified range, and the output current is within the device's rating.
The maximum ambient temperature for the PLMR23615DRRR is 125°C, but it's essential to consider the device's thermal characteristics, such as junction temperature and thermal resistance, to ensure reliable operation.
While the PLMR23615DRRR is a high-quality device, it's essential to review the device's qualification and certification for specific industries, such as automotive or aerospace, to ensure it meets the required standards and regulations.
To troubleshoot issues, start by reviewing the datasheet and application notes, then check the PCB layout, component values, and input/output connections. Use oscilloscopes or other diagnostic tools to identify the root cause of the issue, and consult with Texas Instruments' support resources or online forums if needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PLMR23615DRRR Overview

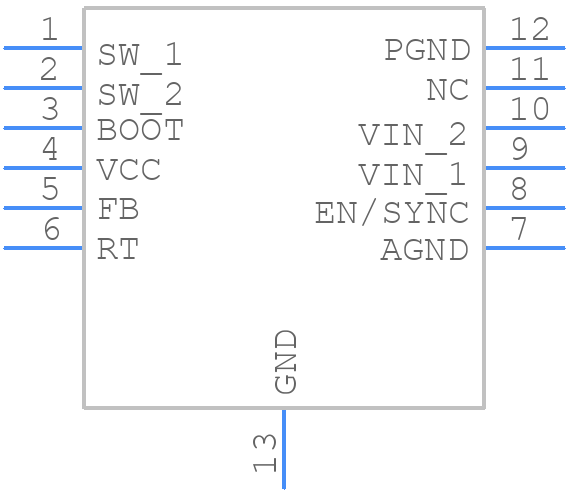

Use the download button to access the PLMR23615DRRR schematic symbol, PCB footprint, and 3D model.
