Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to the bottom layer to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended.
To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a heat sink if necessary, and ensure good airflow around the device. Additionally, consider using a thermistor or thermal sensor to monitor the temperature.
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 3.3V to 5V to ensure reliable operation.
Yes, the PLMR23625CFPDRRR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is designed to operate in harsh environments. However, it's essential to follow the recommended design guidelines and testing procedures to ensure compliance with the specific application requirements.
To troubleshoot issues with the device, start by reviewing the datasheet and application notes to ensure correct usage and configuration. Check the input voltage, output voltage, and current consumption to identify any anomalies. Use a oscilloscope or logic analyzer to monitor the device's behavior and identify any issues. If the problem persists, contact Texas Instruments' support team for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PLMR23625CFPDRRR Overview

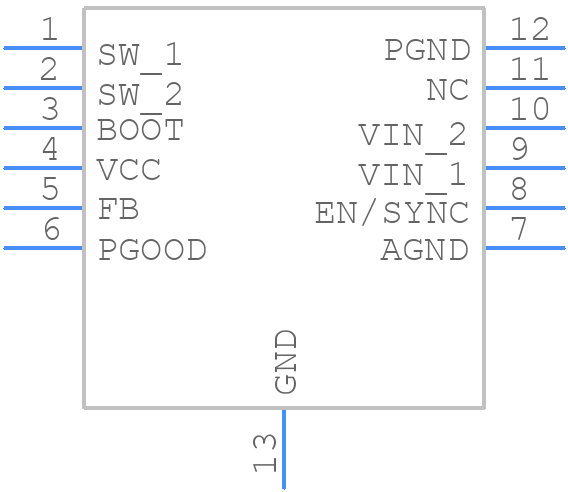

Use the download button to access the PLMR23625CFPDRRR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLMR2,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
