Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and keeping sensitive analog signals away from digital signals.
To ensure accurate voltage regulation, it's crucial to follow the recommended input and output capacitor values, as well as the suggested PCB layout. Additionally, ensure that the input voltage is within the specified range, and the output current is within the device's capabilities.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation. Typically, a maximum ambient temperature of 85°C is recommended for most applications.
The PLMR23630DRRR is an automotive-grade device, but it's essential to review the specific requirements of your application and ensure that the device meets those requirements. Additionally, consider the device's AEC-Q100 qualification and PPAP (Production Part Approval Process) documentation.
The PLMR23630DRRR has a specific power sequencing requirement. Ensure that the input voltage is applied before the enable pin is asserted, and that the output voltage is stable before connecting it to the load. A soft-start circuit can also be implemented to reduce inrush current during startup.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PLMR23630DRRR Overview

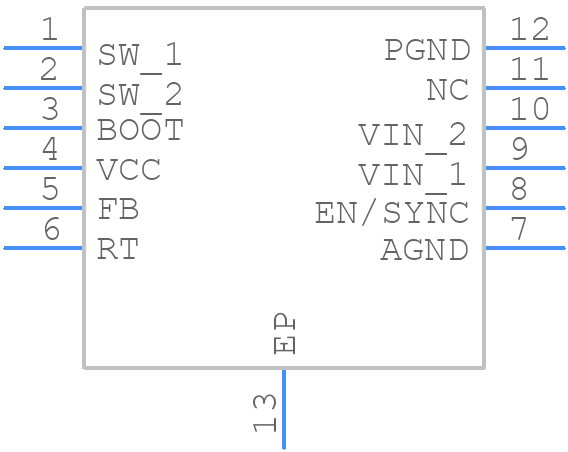

Use the download button to access the PLMR23630DRRR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLMR2,
or try a keyword search, such as Switching Regulator or Controllers
