Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
To ensure accurate voltage regulation, it's crucial to follow the recommended input and output capacitor values, as well as the input voltage range. Additionally, ensure that the device is operated within the specified temperature range and that the output voltage is set correctly using the feedback resistors.
The maximum output current capability of the PLMR33630ADDA is 3A. However, it's essential to consider the thermal limitations and ensure that the device is operated within the specified thermal range to avoid overheating and reduce the output current capability.
To protect the device from overvoltage and undervoltage conditions, it's recommended to use external overvoltage protection (OVP) and undervoltage lockout (UVLO) circuits. These circuits can be implemented using external components, such as zener diodes and resistors, or using dedicated ICs.
The typical startup time for the PLMR33630ADDA is around 10ms to 20ms, depending on the input voltage and output capacitor values. However, this time can vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PLMR33630ADDA Overview

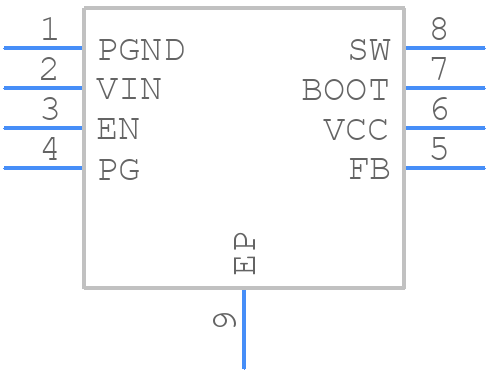

Use the download button to access the PLMR33630ADDA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLMR3,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
