PLS-1+ - Mini-Circuits

Description: RF IC Limiter General Purpose 100kHz ~ 150MHz 100mW 10mA,100kHz ~ 150MHz -55°C to 100°C

Download PLS-1+ Model

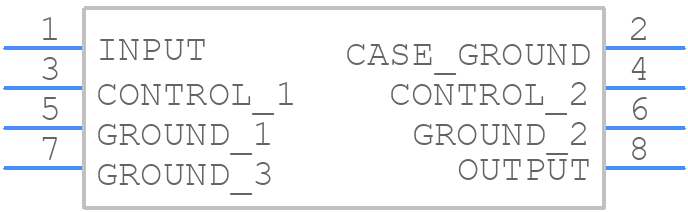

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PLS-1+ - Mini-Circuits PCB footprint - Other - Other - A01_2025-1
click to zoom
3D Models
PLS-1+ - Mini-Circuits  - 3D model - Other - A01_2025-1
click to zoom

PLS-1+ Details

  • Manufacturer Part Number:

    PLS-1+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, HERMETIC SEALED, CASE A01, 8 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Additional Feature:

    HIGH RELIABILITY

  • Adjustability:

    VARIABLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • Input Power-Min (CW):

    6 dBm

  • JESD-609 Code:

    e3/e2

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    150 MHz

  • Operating Frequency-Min:

    0.1 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Power-Max:

    -4 dBm

  • Package Body Material:

    METAL

  • Package Equivalence Code:

    DIP8,.2,200

  • RF/Microwave Device Type:

    LIMITER

  • Surface Mount:

    NO

  • VSWR-Max:

    2

PLS-1+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a via-stitched ground plane on the top layer. The device should be placed near the edge of the board to minimize signal reflections. A low-impedance path to ground is essential for the device's internal biasing network.
  • The PLS-1+ requires a 5V supply voltage and a bias current of 10mA to 20mA. Ensure that the bias voltage is well-regulated and decoupled with a 10uF capacitor. The device's internal biasing network is sensitive to voltage drops, so keep the supply voltage lines short and wide.
  • The PLS-1+ can handle input powers up to +15dBm without damage. However, the device's performance may degrade at higher input powers. It's recommended to use an attenuator or a limiter to prevent excessive input power.
  • Common issues can be caused by poor PCB layout, inadequate grounding, or incorrect biasing. Check the PCB layout for signal reflections, ensure a solid ground plane, and verify the bias voltage and current. Use a spectrum analyzer to identify oscillations and adjust the device's input/output matching networks accordingly.
  • The PLS-1+ is specified to operate from -40°C to +85°C. However, the device's performance may degrade at extreme temperatures. Ensure that the device is operated within the recommended temperature range for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PLS-1+ Overview

Use the download button to access the PLS-1+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLS-1, or try a keyword search, such as RF/Microwave Limiters
