PM-20-5 - Mean Well

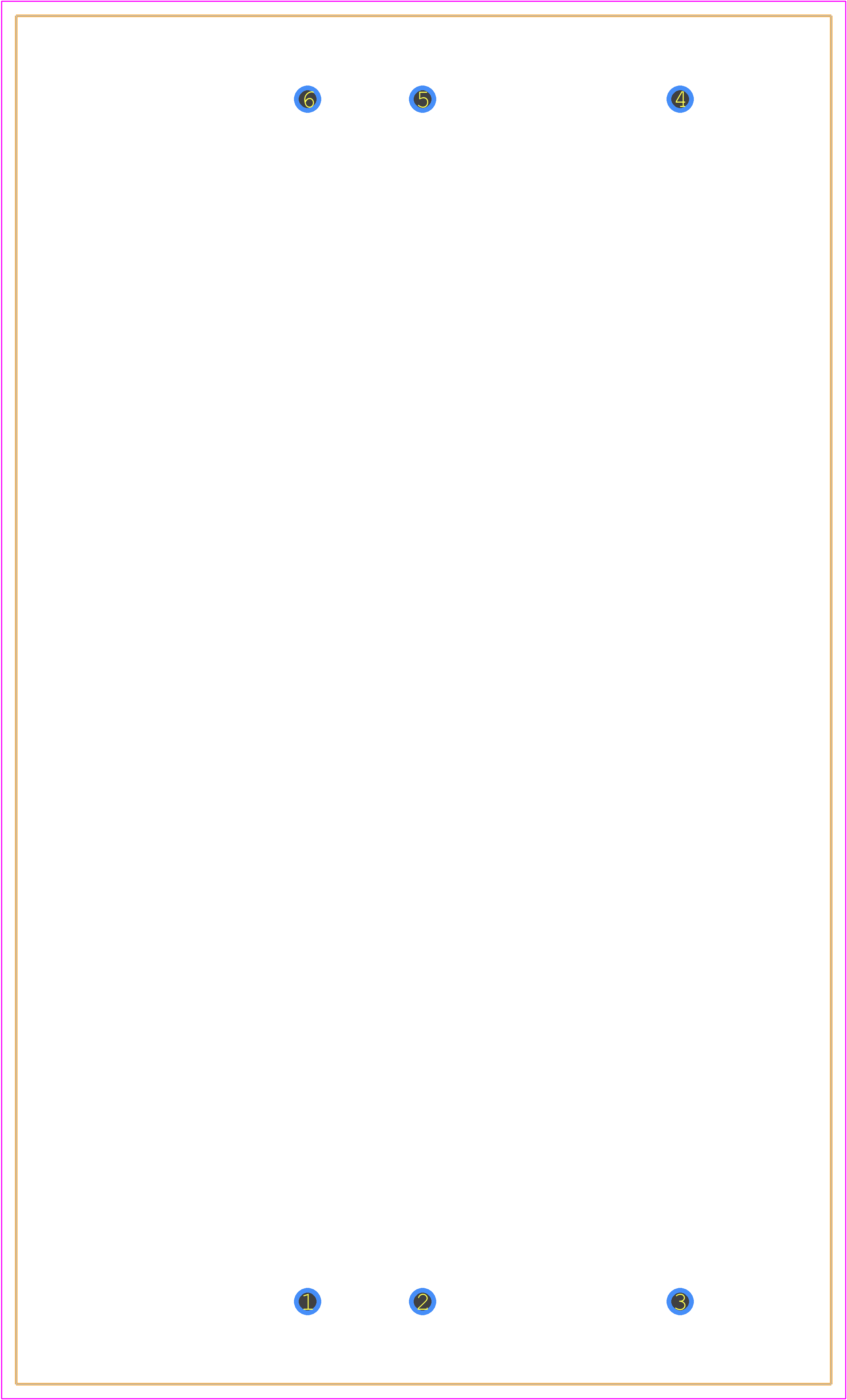

PM-20-5 Details

• Manufacturer Part Number:

  PM-20-5

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  Module-6

• ECCN Code:

  EAR99

• Manufacturer:

  Mean Well

• YTEOL:

  0

• Additional Feature:

  SEATED HGT-NOM; ALSO OPERATES IN 120 TO 370VDC

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Input Voltage-Max:

  264 V

• Input Voltage-Min:

  85 V

• Input Voltage-Nom:

  115 V

• JESD-30 Code:

  R-XDMA-P6

• Length:

  94 mm

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature-Max:

  50 °C

• Operating Temperature-Min:

  -20 °C

• Output Voltage-Max:

  5.1 V

• Output Voltage-Min:

  4.9 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  22.7 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  22 W

• Trim/Adjustable Output:

  NO

• Width:

  56 mm
