PM2110-331K-RC - Bourns

Description: Bourns 330 μH ±10% Iron Power Inductor, Max SRF:1kHz, 3.2A Idc, 90mΩ Rdc PM2110

Download PM2110-331K-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PM2110-331K-RC - Bourns - PCB symbol
click to zoom
PCB Footprints

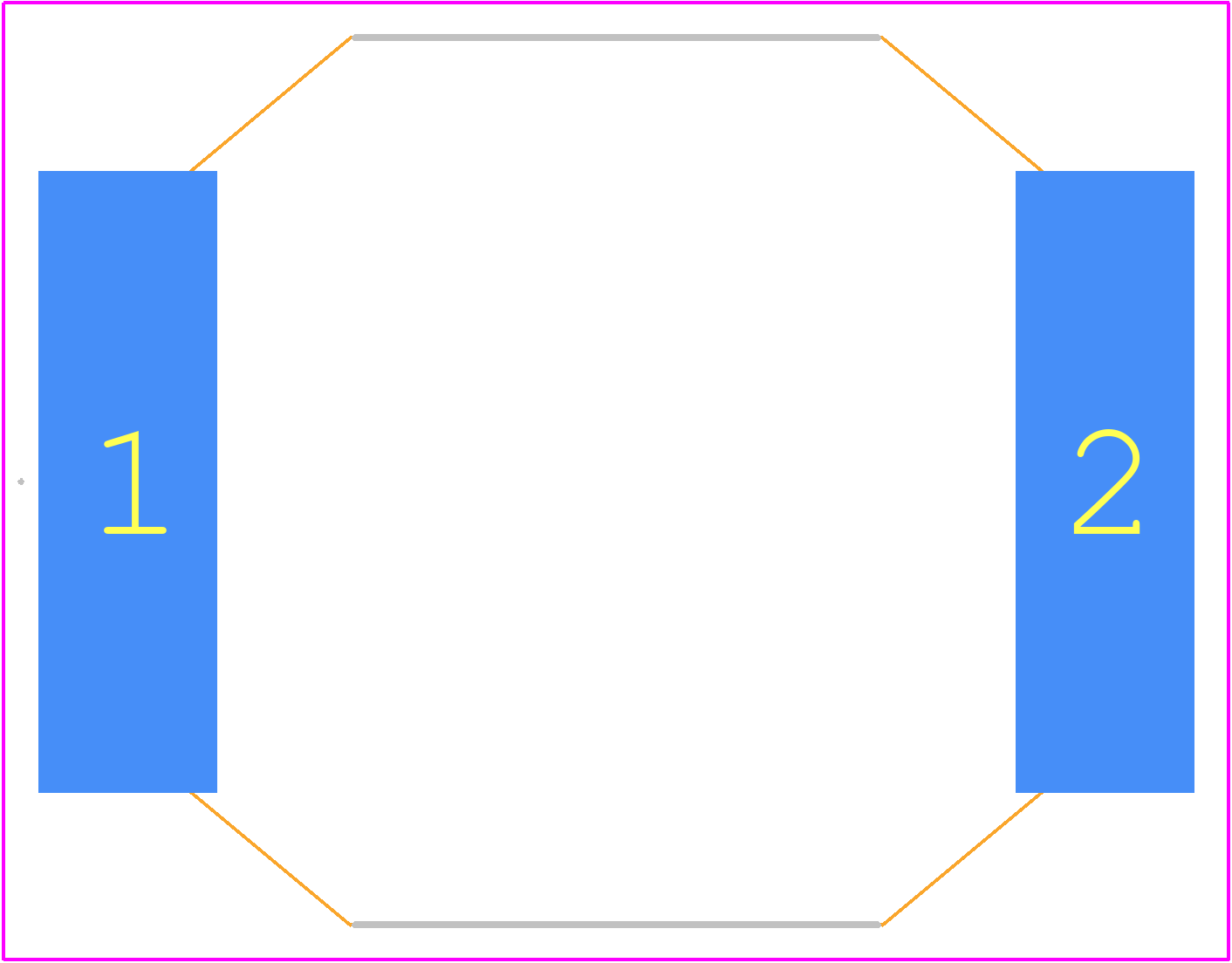

PM2110-331K-RC - Bourns PCB footprint - Other - Other - PM2110-331K-RC-1
click to zoom
3D Models
PM2110-331K-RC - Bourns - 3D model - Other - PM2110-331K-RC-1
click to zoom

PM2110-331K-RC Details

  • Manufacturer Part Number:

    PM2110-331K-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Honduras

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.4

  • Case/Size Code:

    1210

  • Construction:

    Toroidal Core

  • Core Material:

    IRON

  • DC Resistance:

    0.09 Ω

  • Inductance-Nom (L):

    330 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e1

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    15.24 mm

  • Package Length:

    30.5 mm

  • Package Style:

    SMT

  • Package Width:

    25.4 mm

  • Packing Method:

    Box

  • Rated Current-Max:

    3.2 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%
