PM2120-101K-RC - Bourns

Description: Bourns PM2120 Series Type 2120 Wire-wound SMD Inductor with a Iron Core, 100 μH ±10% Wire-Wound 6.1A Idc

Download PM2120-101K-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

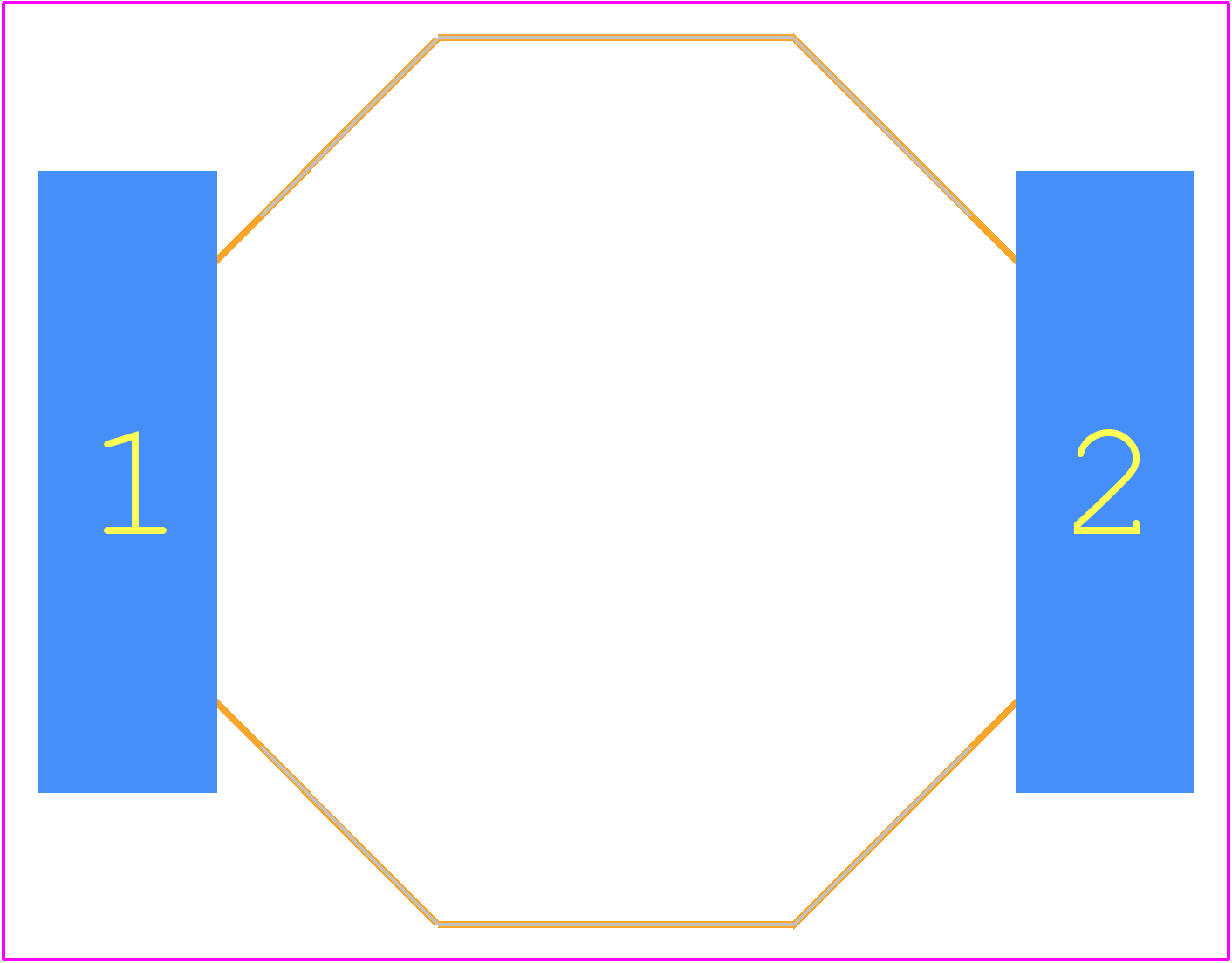

PM2120-101K-RC - Bourns PCB footprint - Other - Other - PM2120-271K-RC-2
click to zoom
3D Models
PM2120-101K-RC - Bourns  - 3D model - Other - PM2120-271K-RC-2
click to zoom

PM2120-101K-RC Details

  • Manufacturer Part Number:

    PM2120-101K-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Honduras

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.4

  • Case/Size Code:

    1210

  • Construction:

    Rectangular

  • Core Material:

    IRON

  • DC Resistance:

    0.035 Ω

  • Inductance-Nom (L):

    100 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e1

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    22.1 mm

  • Package Length:

    30.5 mm

  • Package Style:

    SMT

  • Package Width:

    25.4 mm

  • Packing Method:

    Bulk

  • Rated Current-Max:

    6.1 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

PM2120-101K-RC Frequently Asked Questions (FAQs)

  • Bourns provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper thermal management, minimize parasitic inductance, and optimize performance.
  • To minimize electromagnetic interference (EMI), keep the inductor at least 5 mm away from sensitive components. You can also use shielding techniques, such as copper tape or mu-metal shielding, to contain the magnetic field.
  • While the datasheet specifies a maximum rated current, it's essential to ensure the voltage across the inductor doesn't exceed the specified maximum. A general rule of thumb is to keep the voltage below 1.5 times the maximum rated voltage to prevent saturation and ensure reliability.
  • The SRF is typically above the operating frequency range. To avoid resonance issues, ensure your design's operating frequency is below the SRF. You can also use impedance analysis tools to identify potential resonance issues and take corrective measures.
  • The PM2120-101K-RC has a maximum operating temperature of 125°C. Ensure good airflow around the inductor, and consider using thermal interfaces or heat sinks to dissipate heat. Avoid overheating, as it can lead to reduced lifespan and performance degradation.
