PM25RG1A120 - Mitsubishi

Description: ADOBTING FULL GATE CSTBT CHIP intelligent power modules flat-base type insulated package

Download PM25RG1A120 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

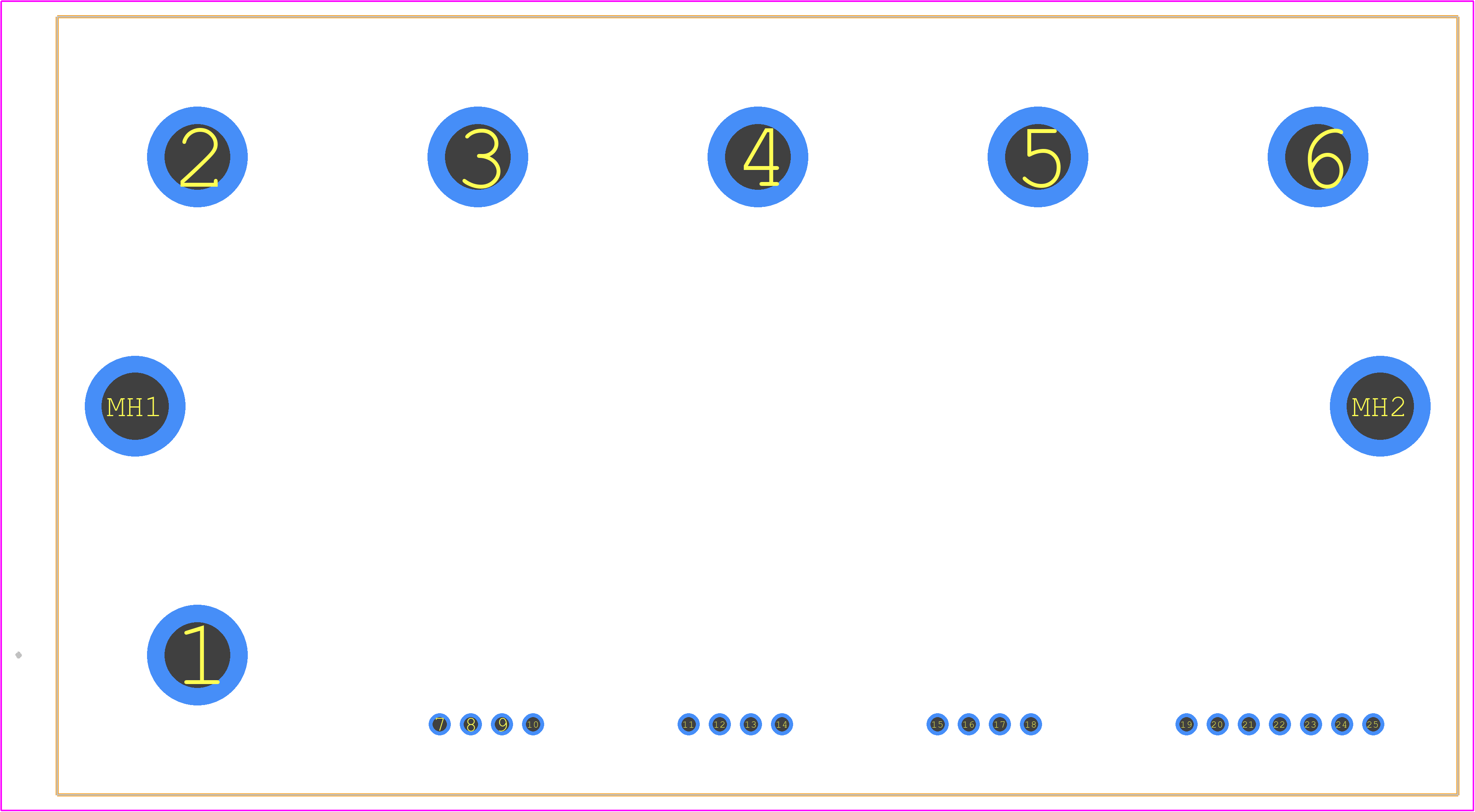

PM25RG1A120 - Mitsubishi PCB footprint - Other - Other - PM25RG1A120-1
click to zoom
3D Models
PM25RG1A120 - Mitsubishi  - 3D model - Other - PM25RG1A120-1
click to zoom

PM25RG1A120 Details

  • Manufacturer Part Number:

    PM25RG1A120

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Mitsubishi Electric

  • YTEOL:

    9.65

  • Additional Feature:

    CONTROL SUPPLY VOLTAGE= 15V

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

  • JESD-30 Code:

    R-XXFM-X25

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    50 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Supply Voltage-Max (Vsup):

    800 V

  • Supply Voltage-Nom (Vsup):

    600 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

PM25RG1A120 Frequently Asked Questions (FAQs)

  • Mitsubishi Electric recommends a PCB layout with a large copper area on the bottom layer to act as a heat sink, and to place thermal vias under the module to improve heat dissipation.
  • To ensure reliable operation in high-humidity environments, it is recommended to apply a conformal coating to the module, and to follow proper storage and handling procedures to prevent moisture absorption.
  • The maximum allowable voltage deviation for the input voltage is ±10% of the rated input voltage. Exceeding this deviation may affect the module's performance and reliability.
  • Yes, the PM25RG1A120 can be used in a parallel configuration to increase the output power. However, it is recommended to consult with Mitsubishi Electric's application engineers to ensure proper design and implementation.
  • Mitsubishi Electric recommends using a pi-filter configuration with a common-mode choke and X-capacitors to minimize EMI. The specific component values and layout should be optimized based on the system's requirements and operating conditions.
