PM50CL1A120 - Mitsubishi

Description: IGBT Modules IPM MODULE L1-SERIES

Download PM50CL1A120 Model

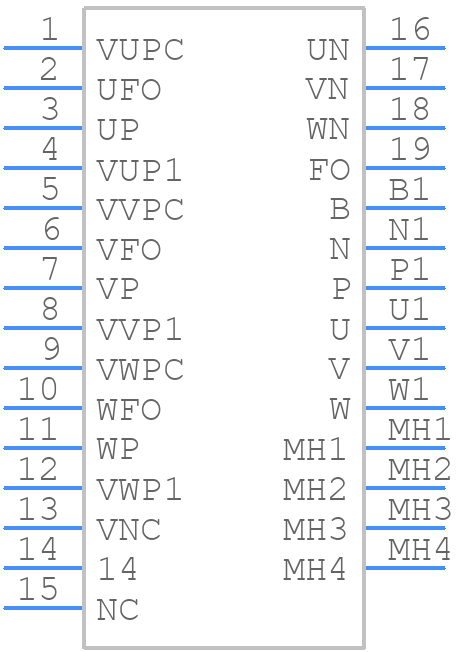

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

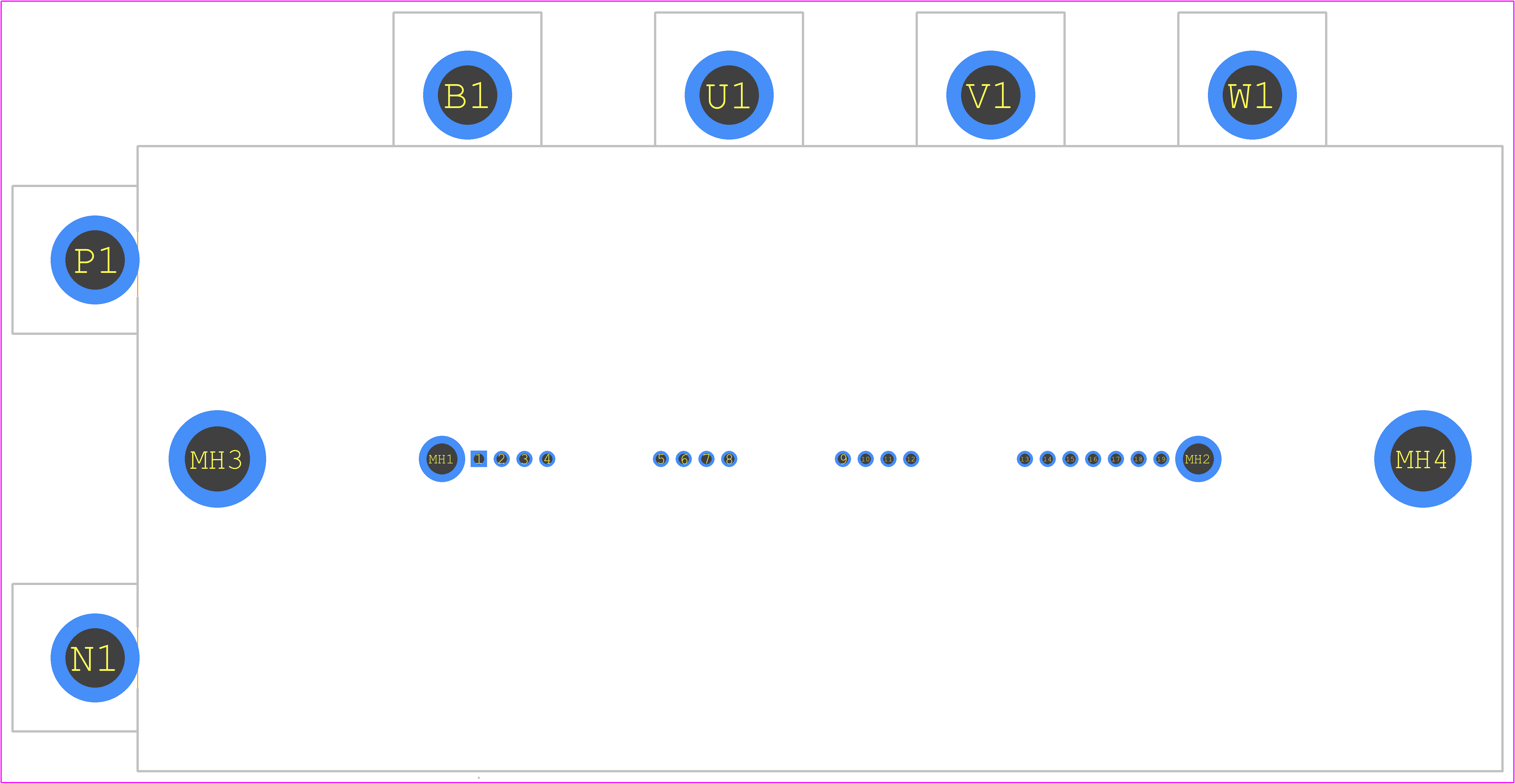

PM50CL1A120 - Mitsubishi PCB footprint - Other - Other - PM50CL1A120-1
click to zoom

PM50CL1A120 Details

  • Manufacturer Part Number:

    PM50CL1A120

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Mitsubishi Electric

  • YTEOL:

    0

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

  • JESD-30 Code:

    R-XXFM-X19

  • Number of Functions:

    1

  • Number of Terminals:

    19

  • Output Current-Max:

    100 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XFM

  • Package Equivalence Code:

    MODULE(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    12 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

PM50CL1A120 Frequently Asked Questions (FAQs)

  • The maximum allowable power cycle for the PM50CL1A120 is 10^6 cycles, with a maximum junction temperature of 125°C and a minimum case temperature of -40°C.
  • Proper thermal management can be achieved by ensuring good heat sink contact, using a thermal interface material, and maintaining a maximum junction temperature of 125°C. A heat sink with a thermal resistance of 0.1°C/W or less is recommended.
  • The recommended gate resistance for the PM50CL1A120 is 10 ohms or higher to prevent oscillation and ensure stable operation.
  • Yes, the PM50CL1A120 can be used in a parallel configuration, but it is essential to ensure that the modules are matched in terms of electrical characteristics and thermal performance to prevent uneven current sharing and thermal runaway.
  • The maximum allowable voltage imbalance between the DC links for the PM50CL1A120 is 10% of the rated voltage to prevent uneven voltage sharing and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PM50CL1A120 Overview

Use the download button to access the PM50CL1A120 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PM50C, or try a keyword search, such as Motion Control Electronics
