PM6680A - STMicroelectronics

Description: Dual synchronous step-down controller with adjustable output voltages plus LDO

Download PM6680A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

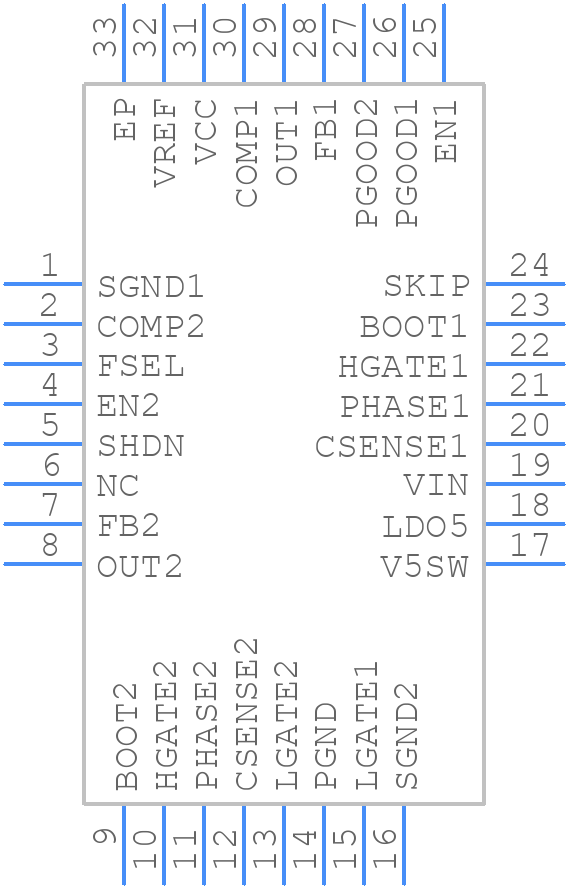

PM6680A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
PM6680A - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN32 (5x5mm)
click to zoom
3D Models
PM6680A - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN32 (5x5mm)
click to zoom

PM6680A Details

  • Manufacturer Part Number:

    PM6680A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, VFQFPN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    VFQFPN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.8

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.4 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PHASE-SHIFT

  • Switching Frequency-Max:

    500 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

PM6680A Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2349, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The PM6680A has a programmable input voltage range. You can configure it using the I2C interface to set the input voltage range to 3.3V, 5V, or 12V. Refer to the datasheet section 7.3.1 for the I2C register settings and the application note AN2349 for more information.
  • The maximum current rating for the output pins is 50mA per pin. However, the total current consumption should not exceed 200mA to ensure reliable operation and prevent overheating. Refer to the datasheet section 6.1 for more information on output current capabilities.
  • The PM6680A has built-in OVP and UVP features. You can configure the threshold voltages using the I2C interface. Refer to the datasheet section 7.3.2 for the I2C register settings and the application note AN2349 for more information on implementing OVP and UVP.
  • The PM6680A has a thermal pad on the bottom of the package. STMicroelectronics recommends using a thermal interface material (TIM) and a heat sink to dissipate heat. Refer to the datasheet section 5.2 for thermal management guidelines and the application note AN2349 for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PM6680A Overview

Use the download button to access the PM6680A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PM668, or try a keyword search, such as Switching Regulator or Controllers
