PM75CG1B120 - Mitsubishi

Description: IGBT Modules FLAT-BASE TYPE INSULATED PACKAGE

Download PM75CG1B120 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

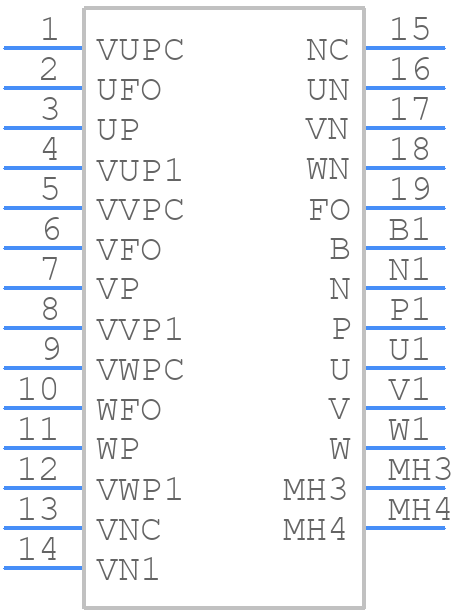

PM75CG1B120 - Mitsubishi - PCB symbol
click to zoom
PCB Footprints

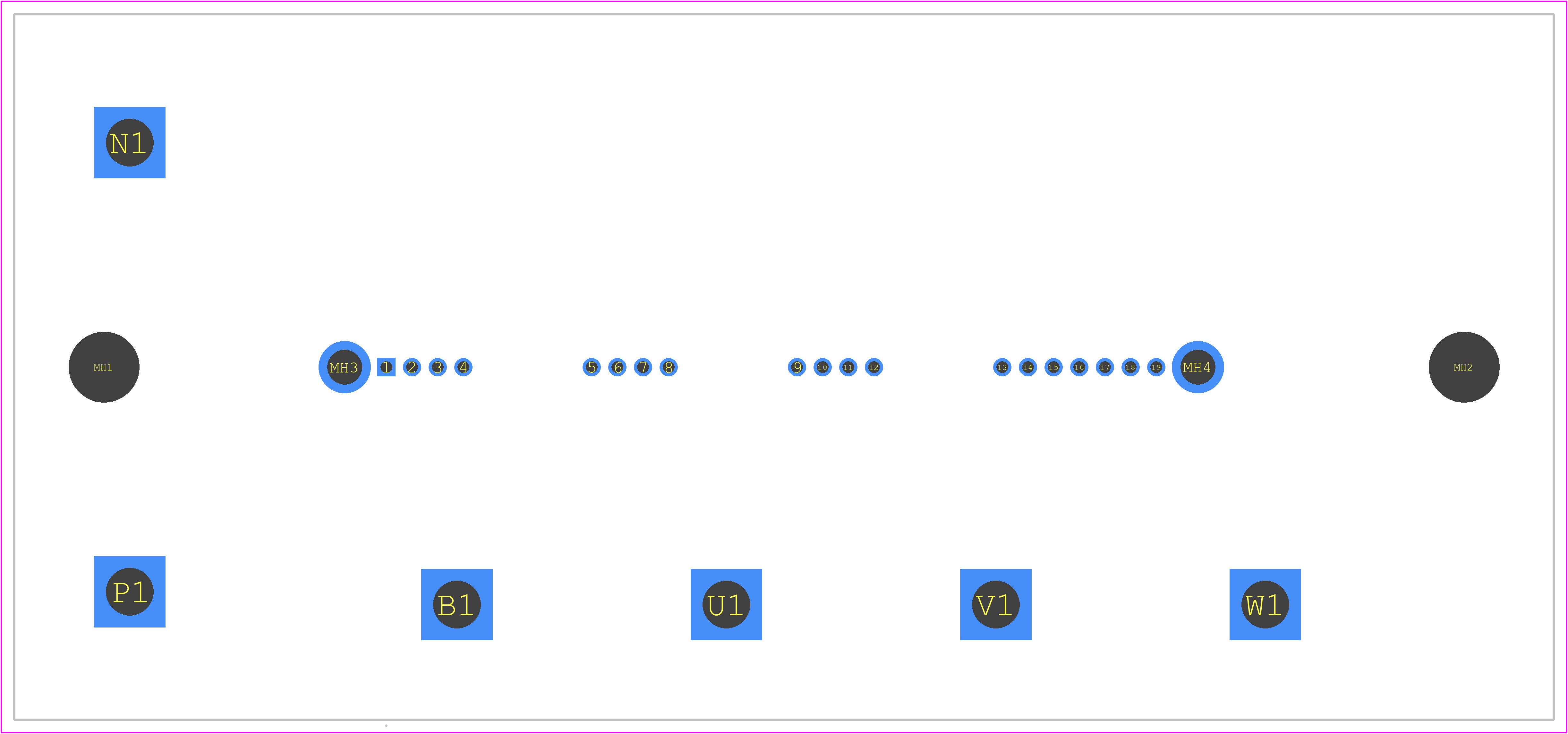

PM75CG1B120 - Mitsubishi PCB footprint - Other - Other - PM75CG1B120-1
click to zoom
3D Models
PM75CG1B120 - Mitsubishi - 3D model - Other - PM75CG1B120-1
click to zoom

PM75CG1B120 Details

  • Manufacturer Part Number:

    PM75CG1B120

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-19

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Mitsubishi Electric

  • YTEOL:

    9.7

  • Additional Feature:

    CONTROL SUPPLY VOLTAGE= 15V

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

  • JESD-30 Code:

    R-XXFM-X19

  • Length:

    120 mm

  • Number of Functions:

    1

  • Number of Terminals:

    19

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    150 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Seated Height-Max:

    22.5 mm

  • Supply Voltage-Max (Vsup):

    800 V

  • Supply Voltage-Nom (Vsup):

    600 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

  • Width:

    55 mm

PM75CG1B120 Frequently Asked Questions (FAQs)

  • The recommended gate resistance for the PM75CG1B120 is between 10 ohms to 20 ohms to ensure stable switching and minimize oscillations.
  • To protect the module, use a voltage clamp circuit to limit the voltage across the IGBT, and implement overcurrent protection using a current sensor and a fault detection circuit.
  • The maximum allowed temperature for the PM75CG1B120 is 150°C for the IGBT and 125°C for the diode. Ensure proper heat sinking and cooling to stay within these limits.
  • Yes, the PM75CG1B120 can be used in a parallel configuration, but ensure that the modules are matched and the gate drive circuits are synchronized to prevent uneven current sharing.
  • The recommended switching frequency for the PM75CG1B120 is up to 20 kHz, but this may vary depending on the specific application and cooling conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PM75CG1B120 Overview

Use the download button to access the PM75CG1B120 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PM75C, or try a keyword search, such as Motion Control Electronics
