PM8834MTR - STMicroelectronics

Description: STMICROELECTRONICS - PM8834MTR - MOSFET Driver, Low Side, 5V-18V Supply, 4A Out, MSOP-8

Download PM8834MTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

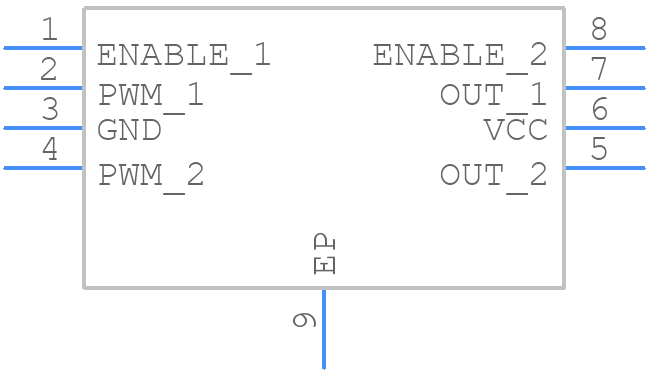

Symbol
PM8834MTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
PM8834MTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - MSOP 8L-EP_1
click to zoom
3D Models
PM8834MTR - STMicroelectronics - 3D model - Small Outline Packages - MSOP 8L-EP_1
click to zoom

PM8834MTR Details

  • Manufacturer Part Number:

    PM8834MTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    10 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.06 µs

  • Turn-on Time:

    0.055 µs

  • Width:

    3 mm

PM8834MTR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to ensure optimal thermal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
  • The PM8834MTR can be configured using the SPI interface. STMicroelectronics provides a configuration tool and a user manual that guides you through the configuration process. Additionally, you can refer to the application notes and design guides provided by STMicroelectronics for specific use cases.
  • STMicroelectronics recommends using 100nF to 1uF decoupling capacitors with a voltage rating of 10V or higher, placed as close as possible to the device's power pins. The capacitors should be rated for high-frequency operation and have a low ESR.
  • STMicroelectronics provides a troubleshooting guide and a FAQ document that covers common issues and their solutions. Additionally, you can use the device's built-in diagnostic features, such as the fault detection and reporting mechanism, to identify and troubleshoot issues.
  • The PM8834MTR has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a heat sink or a thermal interface material, and the PCB should be designed to dissipate heat efficiently. STMicroelectronics provides thermal design guidelines and thermal models to aid in the design process.
