PM8834TR - STMicroelectronics

Description: STMICROELECTRONICS - PM8834TR - MOSFET Driver, Low Side, 5V to 18V Supply, 4A Out, 30ns Delay, SOIC-8

Download PM8834TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

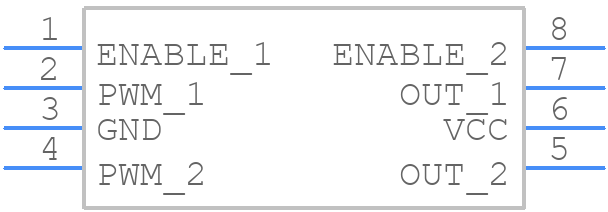

PM8834TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
PM8834TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - soic 8
click to zoom
3D Models
PM8834TR - STMicroelectronics - 3D model - Small Outline Packages - soic 8
click to zoom

PM8834TR Details

  • Manufacturer Part Number:

    PM8834TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.06

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    FULL BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    10 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.035 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    3.9 mm

PM8834TR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure proper airflow around the device.
  • STMicroelectronics recommends using X5R or X7R ceramic capacitors with a minimum capacitance of 10uF for the input and output capacitors. The capacitor values may need to be adjusted based on the specific application requirements.
  • To troubleshoot issues with the PM8834TR, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, thermal design, and component selection. Use oscilloscopes and thermal imaging cameras to identify potential issues. Consult the datasheet and application notes for guidance.
  • Yes, the PM8834TR is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design guidelines, and ensure that the device is properly qualified and validated for the specific application requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PM8834TR Overview

Use the download button to access the PM8834TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PM883, or try a keyword search, such as MOSFET Drivers
