PMA-545+ - Mini-Circuits

Description: RF Amplifier LOW NOISE AMPL / SM / RoHS

Download PMA-545+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

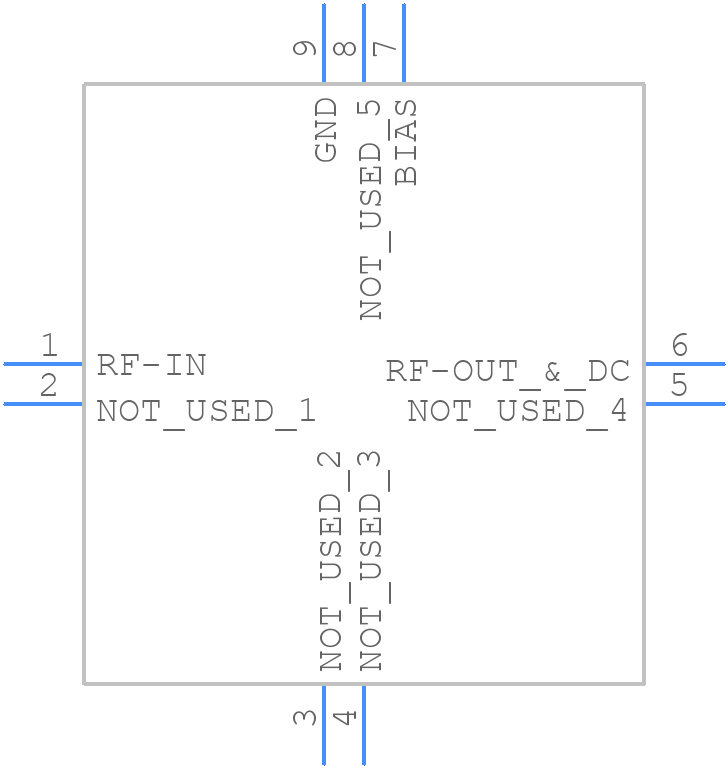

PMA-545+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
PMA-545+ - Mini-Circuits PCB footprint - Other - Other - 3mm x 3mm MCLP [ EIA: QFN)
click to zoom
3D Models
PMA-545+ - Mini-Circuits - 3D model - Other - 3mm x 3mm MCLP [ EIA: QFN)
click to zoom

PMA-545+ Details

  • Manufacturer Part Number:

    PMA-545+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.83

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    12.7 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC8,.12SQ,25

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Supply Current-Max:

    98 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Nickel (Sn/Ag/Ni)
