PMA2-162LN+ - Mini-Circuits

Description: RF Amplifier LOW NOISE AMPL / SM / RoHS

Download PMA2-162LN+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

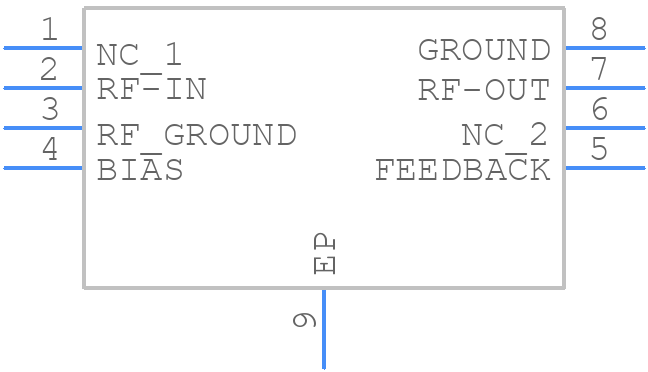

Symbol
PMA2-162LN+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
PMA2-162LN+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MC1631-1
click to zoom
3D Models
PMA2-162LN+ - Mini-Circuits - 3D model - Small Outline No-lead - MC1631-1
click to zoom

PMA2-162LN+ Details

  • Manufacturer Part Number:

    PMA2-162LN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    18.6 dB

  • Input Power-Max (CW):

    25 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    1600 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8(UNSPEC)

  • Power Supplies:

    4 V

  • RF/Microwave Device Type:

    NARROW BAND LOW POWER

  • Supply Current-Max:

    60 mA

  • Surface Mount:

    YES

  • Technology:

    E-PHEMT

  • VSWR-Max:

    1.18

PMA2-162LN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and to use a via-in-pad design to connect the amplifier's ground pins to the ground plane. Additionally, it's recommended to use a low-impedance path for the input and output signals to minimize parasitic inductance.
  • The PMA2-162LN+ is a self-biased amplifier, but it's still important to ensure the correct voltage supply and current limiting. Mini-Circuits recommends using a voltage regulator to maintain a stable voltage supply, and to limit the current to 100mA or less to prevent overheating.
  • While the datasheet specifies an operating temperature range of 0°C to 70°C, Mini-Circuits recommends derating the amplifier's performance at high temperatures. For optimal performance, it's recommended to operate the amplifier at temperatures below 50°C.
  • To prevent oscillations, Mini-Circuits recommends using a low-pass filter at the input and output of the amplifier, and to ensure that the amplifier is properly decoupled from the power supply. Additionally, it's recommended to use a ferrite bead or a resistor in series with the input signal to prevent high-frequency oscillations.
  • Mini-Circuits recommends using a 50Ω input and output impedance matching scheme to ensure maximum power transfer and minimum reflections. This can be achieved using a combination of resistors, capacitors, and inductors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMA2-162LN+ Overview

Use the download button to access the PMA2-162LN+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMA2-, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
