PMA2-162LNA+ - Mini-Circuits

Description: SMT LNA, 700 MHZ - 1.6 GHZ, 50

Download PMA2-162LNA+ Model

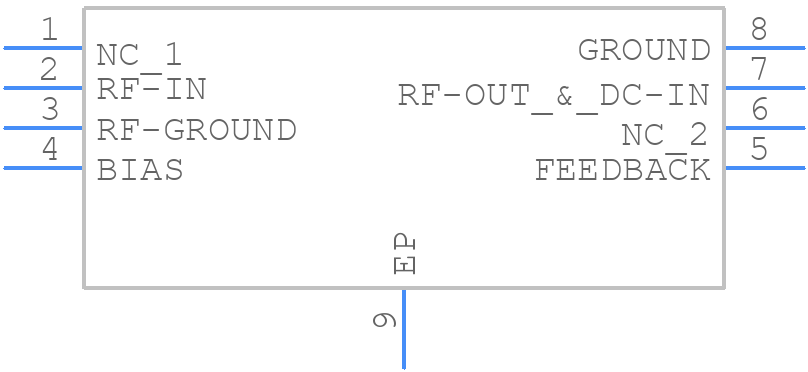

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PMA2-162LNA+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MC1631-1_2023
click to zoom
3D Models
PMA2-162LNA+ - Mini-Circuits  - 3D model - Small Outline No-lead - MC1631-1_2023
click to zoom

PMA2-162LNA+ Details

  • Manufacturer Part Number:

    PMA2-162LNA+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.36

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    18.6 dB

  • Input Power-Max (CW):

    25 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    1600 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Power Supplies:

    4 V

  • RF/Microwave Device Type:

    NARROW BAND LOW POWER

  • Supply Current-Max:

    130 mA

  • Surface Mount:

    YES

  • Technology:

    E-PHEMT

  • VSWR-Max:

    1.18

PMA2-162LNA+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane around the amplifier. The input and output traces should be 50 ohms impedance, and the amplifier should be placed close to the input and output connectors.
  • The PMA2-162LNA+ requires a single 12V supply, and the recommended biasing scheme is to use a 12V voltage regulator with a 100nF decoupling capacitor. The amplifier also requires a 10kohm resistor between the VCC pin and ground for biasing.
  • The PMA2-162LNA+ can handle up to 10dBm of input power without damage. However, for optimal performance, it is recommended to keep the input power below 0dBm.
  • For high-power applications, it is recommended to use a heat sink with a thermal conductivity of at least 1W/m-K. The heat sink should be attached to the amplifier's metal tab using a thermal interface material. Additionally, ensure good airflow around the amplifier to prevent overheating.
  • The typical noise figure of the PMA2-162LNA+ is around 1.5dB, but this can vary depending on the frequency, temperature, and input power. For more accurate noise figure measurements, it is recommended to consult the amplifier's test report or contact Mini-Circuits directly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMA2-162LNA+ Overview

Use the download button to access the PMA2-162LNA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMA2-, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.

Parts related to PMA2-162LNA+

Showing 0 results

PMA2-162LNA+ Alternates

Showing results

Image Part Number Model
Part Image PMA2-162LN+ Mini-Circuits

Narrow Band Low Power Amplifier, 700MHz Min, 1600MHz Max, 1 Func
