PMA2-252LNA+ - Mini-Circuits

Description: RF Amplifier SMT Low Noise Amplifier, 1.5 - 2.5 GHz, 50 Ohm

Download PMA2-252LNA+ Model

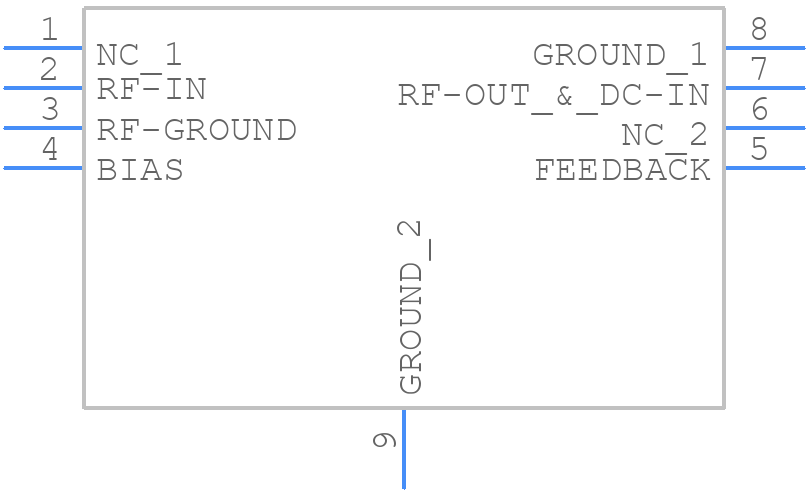

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PMA2-252LNA+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MC1631-1
click to zoom
3D Models
PMA2-252LNA+ - Mini-Circuits  - 3D model - Small Outline No-lead - MC1631-1
click to zoom

PMA2-252LNA+ Details

  • Manufacturer Part Number:

    PMA2-252LNA+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

PMA2-252LNA+ Frequently Asked Questions (FAQs)

  • The maximum input power that the PMA2-252LNA+ can handle is +10 dBm. Exceeding this power may cause damage to the device or affect its performance.
  • To ensure the best noise figure performance, make sure to use a high-quality, low-loss input matching network and optimize the input impedance to 50 ohms. Additionally, operate the device at the recommended bias conditions and temperature range.
  • The PMA2-252LNA+ is designed specifically for low-noise amplification applications, such as in cellular, Wi-Fi, and satellite communications. While it can be used as a general-purpose amplifier, its performance may not be optimal for other applications. Consult with a Mini-Circuits application engineer for guidance on using the PMA2-252LNA+ in your specific application.
  • Mini-Circuits recommends using a low-inductance, high-frequency PCB layout with a solid ground plane and short, direct connections to the device pins. A good grounding scheme is essential to minimize noise and ensure optimal performance. Consult the Mini-Circuits application note AN-60-014 for more information on PCB layout and grounding guidelines.
  • Common issues with the PMA2-252LNA+ can often be attributed to improper input/output matching, poor PCB layout, or incorrect biasing. Consult the Mini-Circuits application note AN-60-014 for troubleshooting guidelines and contact Mini-Circuits technical support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMA2-252LNA+ Overview

Use the download button to access the PMA2-252LNA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMA2-, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
