PMA2-43LN+ - Mini-Circuits

Description: RF Amplifier SMT Low Noise Amplifier, 1100 - 4000 MHz, 50

Download PMA2-43LN+ Model

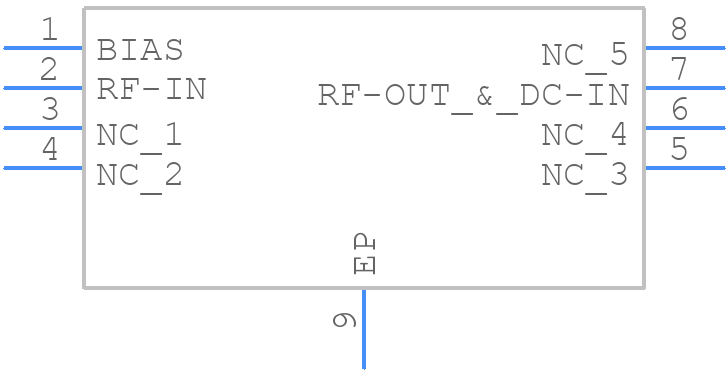

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PMA2-43LN+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - PMA2-123LN+-
click to zoom
3D Models
PMA2-43LN+ - Mini-Circuits  - 3D model - Small Outline No-lead - PMA2-123LN+-
click to zoom

PMA2-43LN+ Details

  • Manufacturer Part Number:

    PMA2-43LN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.64

  • Additional Feature:

    HIGH RELIABILITY

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    18 dB

  • Input Power-Max (CW):

    14 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    1100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Matte Tin (Sn)

PMA2-43LN+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is crucial for the PMA2-43LN+. Use a solid ground plane, and connect the amplifier's ground pins to it. Keep the input and output traces short and away from each other to minimize coupling. Use a 50-ohm microstrip line for the input and output traces.
  • The PMA2-43LN+ is designed for 50-ohm systems. For optimal performance, use a conjugate match at the input and output. You can use a Smith chart or a network analyzer to determine the optimal matching network. Mini-Circuits also provides a matching network design guide.
  • The maximum safe operating temperature for the PMA2-43LN+ is 85°C. Operating the amplifier above this temperature can reduce its lifespan and affect its performance.
  • To prevent oscillations, ensure that the input and output are properly terminated, and the amplifier is biased correctly. Use a decoupling capacitor (e.g., 10nF) between the power supply and ground. Avoid using long wires or cables that can cause feedback and oscillations.
  • Use a low-ESR capacitor (e.g., 10uF) in parallel with a smaller capacitor (e.g., 100nF) to decouple the power supply. Add a ferrite bead or a pi-filter to filter out high-frequency noise and ensure a clean power supply.
