PMA3-14LN+ - Mini-Circuits

Description: RF Amplifier SMT Low Noise Amplifier, 50 - 10000 MHz, 50ohm

Download PMA3-14LN+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

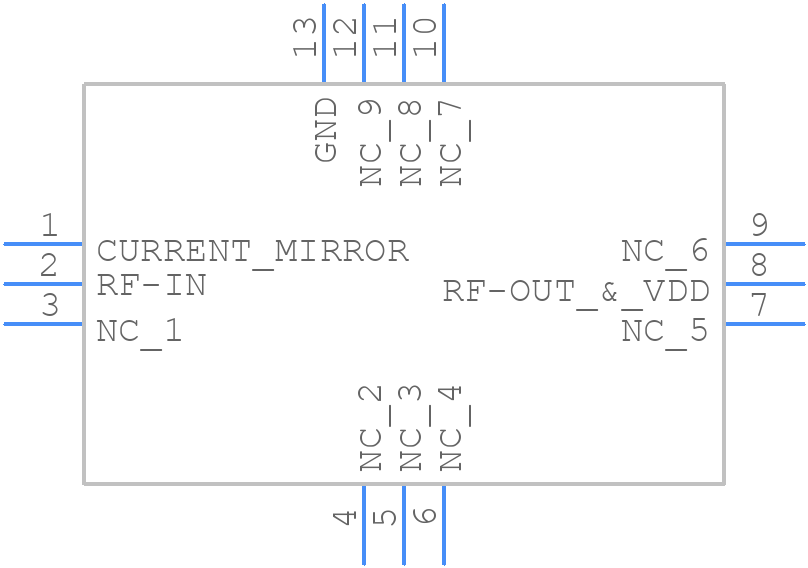

Symbol
PMA3-14LN+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
PMA3-14LN+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ1225_2023
click to zoom
3D Models
PMA3-14LN+ - Mini-Circuits - 3D model - Quad Flat No-Lead - DQ1225_2023
click to zoom

PMA3-14LN+ Details

  • Manufacturer Part Number:

    PMA3-14LN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.27

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    20.3 dB

  • Input Power-Max (CW):

    12 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    10000 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    6 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    90 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Tin (Sn)

  • VSWR-Max:

    1.22

PMA3-14LN+ Frequently Asked Questions (FAQs)

  • The maximum input power that the PMA3-14LN+ can handle is +10 dBm. Exceeding this power may cause damage to the device.
  • To ensure the best possible noise figure performance, make sure to use a high-quality, low-noise power supply, and keep the device at a stable temperature. Additionally, use a good quality input matching network to minimize reflections and ensure optimal power transfer.
  • Yes, the PMA3-14LN+ can be used as a receiver amplifier in a 50 ohm system. However, you may need to add external matching components to achieve optimal performance. Consult the datasheet and application notes for guidance on impedance matching.
  • The recommended operating temperature range for the PMA3-14LN+ is -40°C to +85°C. Operating the device outside of this range may affect its performance and reliability.
  • Yes, the PMA3-14LN+ is a high-reliability device that is suitable for use in demanding applications, including space-constrained systems. However, you should consult with Mini-Circuits' application engineers to ensure that the device meets your specific requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMA3-14LN+ Overview

Use the download button to access the PMA3-14LN+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMA3-, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
