PMA3-313GLN+ - Mini-Circuits

Description: RF Amplifier MONOLITHIC AMPL/PMA

Download PMA3-313GLN+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

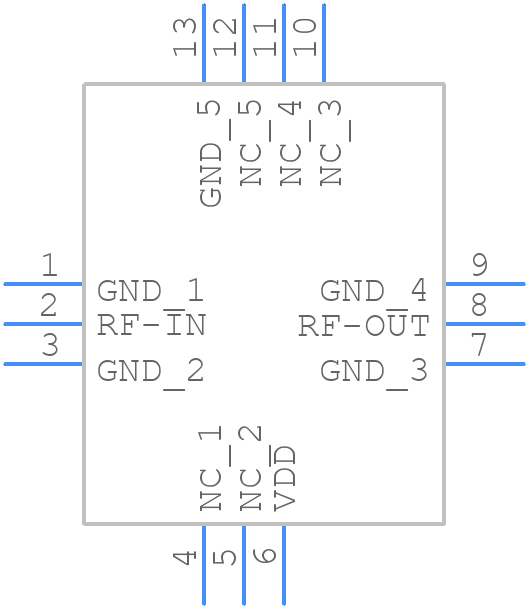

PMA3-313GLN+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
PMA3-313GLN+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ1225_2023-2
click to zoom
3D Models
PMA3-313GLN+ - Mini-Circuits - 3D model - Quad Flat No-Lead - DQ1225_2023-2
click to zoom

PMA3-313GLN+ Details

  • Manufacturer Part Number:

    PMA3-313GLN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    14.5 dB

  • Input Power-Max (CW):

    13 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    31000 MHz

  • Operating Frequency-Min:

    26500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12(UNSPEC)

  • Power Supplies:

    4 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Supply Current-Max:

    112 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    2.1

PMA3-313GLN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and to use a via-in-pad design to connect the amplifier's ground pins to the ground plane. Additionally, it's recommended to use a low-impedance path for the power supply lines and to decouple the power supply with capacitors.
  • The PMA3-313GLN+ is a self-biased amplifier, but it's still important to ensure the correct voltage supply and current limit. Mini-Circuits recommends using a voltage regulator to supply a stable voltage, and to limit the current to 200mA or less to prevent overheating.
  • The PMA3-313GLN+ is rated for operation from -40°C to +85°C, but it's recommended to derate the amplifier's performance at higher temperatures to ensure reliability and prevent thermal runaway.
  • While the PMA3-313GLN+ can handle high-frequency signals, it's not recommended for use in switching power supply applications due to its limited power handling capability and potential for oscillation. Instead, consider using a dedicated power amplifier or switch-mode amplifier.
  • To troubleshoot oscillation or instability, check the PCB layout and grounding scheme, ensure the correct voltage supply and current limit, and verify that the input and output impedances are matched. Additionally, use a spectrum analyzer to identify any unwanted frequency components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMA3-313GLN+ Overview

Use the download button to access the PMA3-313GLN+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMA3-, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
