PMA3-34GLN+ - Mini-Circuits

Description: RF Amplifier MONOLITHIC AMPL/PMA

Download PMA3-34GLN+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

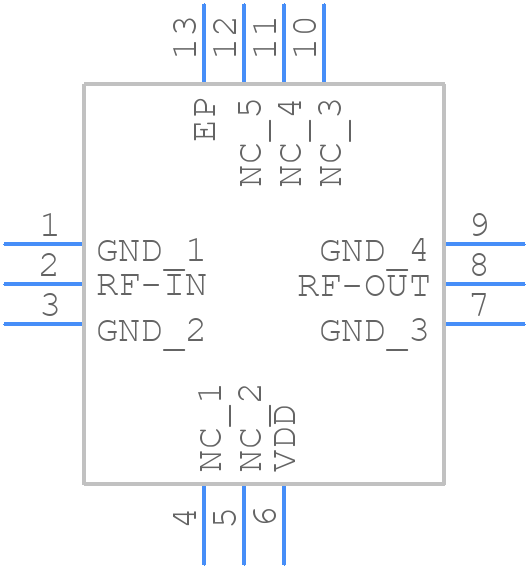

Symbol
PMA3-34GLN+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
PMA3-34GLN+ - Mini-Circuits PCB footprint - Other - Other - DQ1225_2022
click to zoom
3D Models
PMA3-34GLN+ - Mini-Circuits - 3D model - Other - DQ1225_2022
click to zoom

PMA3-34GLN+ Details

  • Manufacturer Part Number:

    PMA3-34GLN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    22.2 dB

  • Input Power-Max (CW):

    13 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    30000 MHz

  • Operating Frequency-Min:

    10000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12(UNSPEC)

  • Power Supplies:

    4 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Supply Current-Max:

    112 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.67

PMA3-34GLN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and to use a via-in-pad design to connect the amplifier's ground pins to the ground plane. Additionally, it's recommended to use a low-inductance path for the input and output connections.
  • The PMA3-34GLN+ is a self-biased amplifier, but it's still important to ensure the correct voltage supply and current limiting resistors are used. Refer to the application note AN-60-014 for detailed biasing and circuit design guidelines.
  • The maximum input power rating is not explicitly stated in the datasheet, but according to Mini-Circuits' application engineers, the amplifier can handle up to +10 dBm of input power without damage. However, this may affect the amplifier's linearity and noise figure.
  • Yes, the PMA3-34GLN+ can be used in a push-pull configuration to increase the output power. However, this requires careful design and layout to ensure proper impedance matching and to minimize even-order harmonics.
  • The PMA3-34GLN+ is specified to operate from -40°C to +85°C, but it's recommended to derate the amplifier's performance at temperatures above +70°C to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMA3-34GLN+ Overview

Use the download button to access the PMA3-34GLN+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMA3-, or try a keyword search, such as RF/Microwave Amplifiers
