- Part Number PMA3-453+
- Manufacturer Mini-Circuits
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - DQ1225
- Released Date Aug 2, 2023
- Last Modified Date Aug 2, 2023 10:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
PMA3-453+ Details
-
Manufacturer Part Number:
PMA3-453+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Manufacturer:
Mini-Circuits
-
YTEOL:
8.73
-
Additional Feature:
LOW NOISE
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
10.4 dB
-
Input Power-Max (CW):
13 dBm
-
Mounting Feature:
SURFACE MOUNT
PMA3-453+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
The PMA3-453+ has a high power dissipation, so it's crucial to provide adequate heat sinking. Mini-Circuits recommends using a heat sink with a thermal resistance of less than 10°C/W and ensuring good thermal contact between the amplifier and the heat sink.
-
While the datasheet doesn't specify a maximum input power, Mini-Circuits recommends limiting the input power to -10 dBm to prevent damage to the amplifier. Exceeding this limit may result in reduced performance, oscillation, or even damage to the device.
-
Yes, the PMA3-453+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout to ensure proper balancing and impedance matching.
-
While the datasheet specifies a typical gain and output power, the noise figure is not explicitly stated. However, according to Mini-Circuits' application notes, the typical noise figure of the PMA3-453+ is around 3.5 dB.
Trust Checks
Community Provided
System Verified
Community Approved
PMA3-453+ Overview

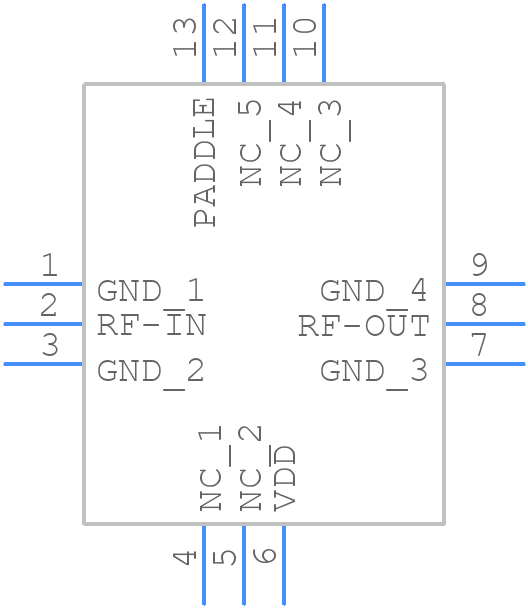

Use the download button to access the PMA3-453+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMA3-,
or try a keyword search, such as RF/Microwave Amplifiers
