PMA3-5153+ - Mini-Circuits

Description: RF Amplifier SMT Low Noise Amplifier, 5.5 - 15.5 GHz, 50ohm

Download PMA3-5153+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

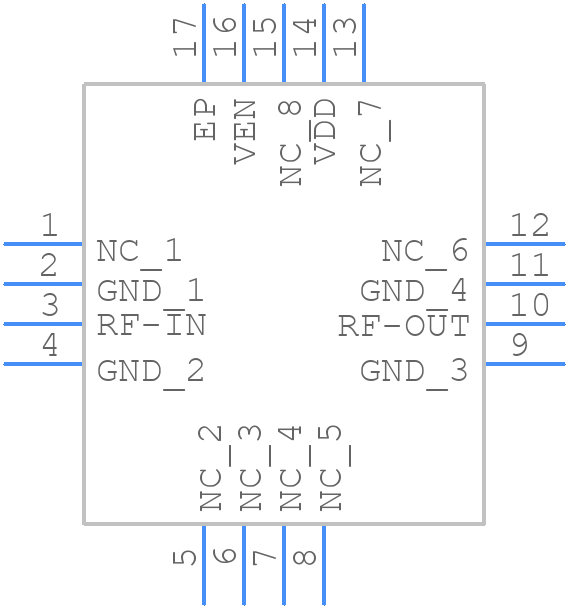

PMA3-5153+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
PMA3-5153+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead QFN 3x3 mm
click to zoom
3D Models
PMA3-5153+ - Mini-Circuits - 3D model - Quad Flat No-Lead - 16-Lead QFN 3x3 mm
click to zoom

PMA3-5153+ Details

  • Manufacturer Part Number:

    PMA3-5153+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

PMA3-5153+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane under the amplifier. The input and output traces should be kept short and away from the edges of the board. A low-impedance path to ground is essential for optimal performance.
  • The PMA3-5153+ is a self-biased amplifier, but it's essential to ensure the voltage supply is within the recommended range (Vcc = 12V to 15V). Additionally, the amplifier should be operated within the recommended temperature range (-40°C to +85°C) to ensure proper biasing.
  • The maximum input power the PMA3-5153+ can handle without damage is +10 dBm. Exceeding this limit may cause permanent damage to the amplifier.
  • The PMA3-5153+ has a 50Ω input and output impedance. To achieve optimal performance, it's recommended to use a 50Ω transmission line or a matching network to match the impedance of the amplifier to the system's impedance.
  • The PMA3-5153+ is designed to operate reliably over a temperature range of -40°C to +85°C. However, for optimal performance, it's recommended to operate the amplifier within a temperature range of 0°C to 50°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMA3-5153+ Overview

Use the download button to access the PMA3-5153+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMA3-, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
