PMA3-63GLN+ - Mini-Circuits

Description: RF Amplifier MMIC WIDEBAND LOW NOISE AMPL

Download PMA3-63GLN+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

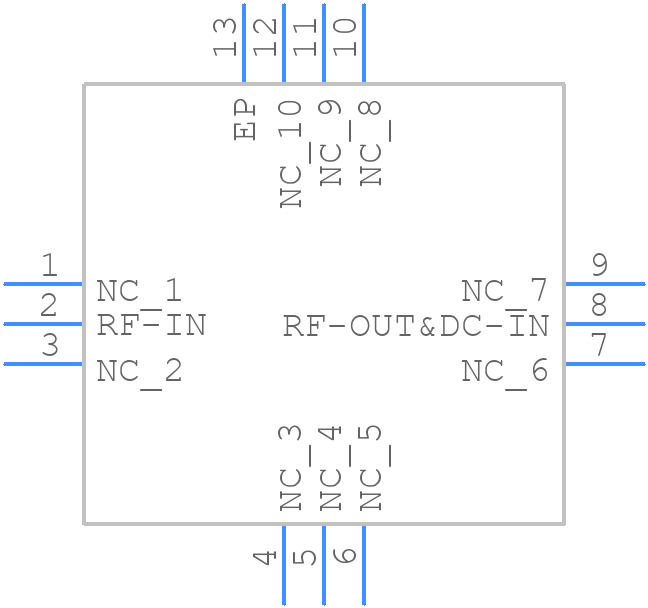

PMA3-63GLN+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
PMA3-63GLN+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-12
click to zoom
3D Models
PMA3-63GLN+ - Mini-Circuits - 3D model - Quad Flat No-Lead - QFN-12
click to zoom

PMA3-63GLN+ Details

  • Manufacturer Part Number:

    PMA3-63GLN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.46

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    22 dB

  • Input Power-Max (CW):

    10 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    1800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Supply Current-Max:

    80 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.17

PMA3-63GLN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a specific PCB layout and footprint to ensure optimal performance. The recommended layout is available in the application note AN-60-014, which can be downloaded from the Mini-Circuits website.
  • Proper thermal management is crucial for the PMA3-63GLN+. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The device's thermal resistance (θJA) is specified in the datasheet.
  • The PMA3-63GLN+ is designed for 50Ω input and output impedance matching. Ensure that the input and output circuits are properly matched to 50Ω to achieve optimal gain, noise figure, and return loss.
  • The PMA3-63GLN+ requires a positive voltage supply (Vcc) and a negative voltage supply (Vee). Ensure that the voltage supplies are properly regulated and filtered to prevent noise and ripple. The recommended biasing conditions are specified in the datasheet.
  • The PMA3-63GLN+ is designed to handle a maximum input power of +10 dBm. Exceeding this power level may cause damage to the device or affect its performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMA3-63GLN+ Overview

Use the download button to access the PMA3-63GLN+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMA3-, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
