PMBT3906VS,115 - Nexperia

Description: NEXPERIA - PMBT3906VS,115 - Bipolar Transistor Array, Dual PNP, -40 V, -200 mA, 240 mW, 100 hFE, SOT-666

Download PMBT3906VS,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

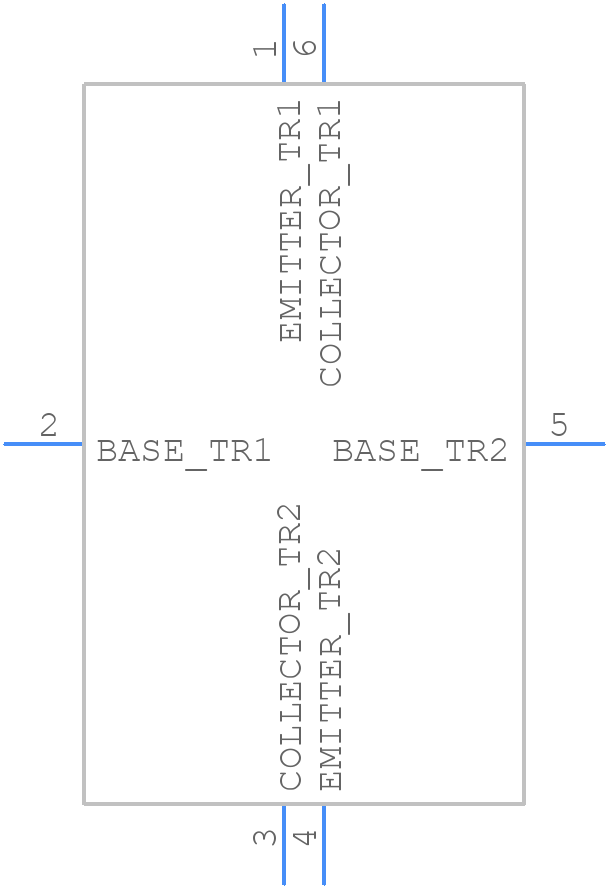

PMBT3906VS,115 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PMBT3906VS,115 - Nexperia PCB footprint - Other - Other - SOT666
click to zoom
3D Models
PMBT3906VS,115 - Nexperia - 3D model - Other - SOT666
click to zoom

PMBT3906VS,115 Details

  • Manufacturer Part Number:

    PMBT3906VS,115

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT666

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.2 A

  • Collector-Emitter Voltage-Max:

    40 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    30

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

  • Turn-off Time-Max (toff):

    300 ns

  • Turn-on Time-Max (ton):

    70 ns

PMBT3906VS,115 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for PMBT3906VS,115 is a standard SOT23 package with a 1.3mm x 1.3mm body size and a 0.5mm pitch. The datasheet provides a recommended PCB footprint diagram.
  • To ensure reliable operation of PMBT3906VS,115 in high-temperature environments, ensure that the device is operated within its recommended operating temperature range (-55°C to 150°C). Also, consider using a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device.
  • The maximum allowed voltage on the input pins of PMBT3906VS,115 is 6V. Exceeding this voltage may damage the device.
  • Yes, PMBT3906VS,115 can be used in a switching regulator application. However, ensure that the device is operated within its recommended switching frequency range (up to 100 kHz) and that the output voltage is within the recommended range (up to 40V).
  • To handle ESD protection for PMBT3906VS,115, ensure that the device is handled and stored in an ESD-protected environment. Use ESD-protective packaging and handling materials, and consider using ESD-protection devices such as TVS diodes or ESD-protection ICs in the circuit design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMBT3906VS,115 Overview

Use the download button to access the PMBT3906VS,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMBT3, or try a keyword search, such as Small Signal Bipolar Transistors
