A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Monitor the device's junction temperature and adjust the system design accordingly.
Exceeding the maximum junction temperature (Tj) can lead to reduced lifespan, decreased performance, and potential device failure. Ensure the system design keeps the junction temperature below the recommended maximum of 150°C.
Implement a robust EOS protection scheme, including TVS diodes, resistors, and capacitors. Ensure the system design can withstand voltage transients and surges.
Follow the JEDEC J-STD-020D.1 standard for reflow soldering, with a peak temperature of 260°C and a dwell time of 20-40 seconds.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PMP4201Y,115 Overview

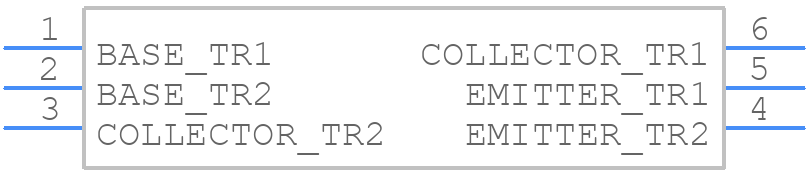

Use the download button to access the PMP4201Y,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMP42,
or try a keyword search, such as Small Signal Bipolar Transistors
About Nexperia
Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
