PMP4501V,115 - Nexperia

Description: Nexperia PMP4501V,115 Dual NPN Transistor, 100 mA, 45 V, 6-Pin SOT-666

Download PMP4501V,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

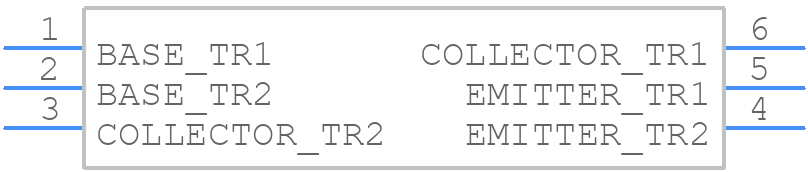

Symbol
PMP4501V,115 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PMP4501V,115 - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - (SOT666)
click to zoom
3D Models
PMP4501V,115 - Nexperia - 3D model - SOT23 (6-Pin) - (SOT666)
click to zoom

PMP4501V,115 Details

  • Manufacturer Part Number:

    PMP4501V,115

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT666

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    45 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

PMP4501V,115 Frequently Asked Questions (FAQs)

  • Nexperia recommends a PCB layout with a solid ground plane and thermal vias under the device to improve heat dissipation. A minimum of 2oz copper thickness is recommended for the PCB.
  • To ensure reliable operation at high temperatures, it is essential to follow Nexperia's recommended thermal design guidelines, including proper heat sinking, thermal interface material selection, and PCB layout. Additionally, ensure that the device is operated within its specified temperature range.
  • Exceeding the maximum junction temperature can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It is crucial to ensure that the device operates within its specified temperature range to maintain reliability and performance.
  • While the PMP4501V,115 is designed to operate in a variety of environments, high humidity can still affect its performance and reliability. Nexperia recommends following proper moisture sensitivity level (MSL) handling and storage procedures to minimize the risk of moisture-related issues.
  • Nexperia recommends a soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 30-60 seconds. It is essential to follow the recommended soldering profile to prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMP4501V,115 Overview

Use the download button to access the PMP4501V,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMP45, or try a keyword search, such as Small Signal Bipolar Transistors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
