PMP4501Y,115 - Nexperia

Description: Now Nexperia PMP4501Y - Small Signal Bipolar Transistor, 0.1A, 45V, 2-Element, NPN, SC-88

Download PMP4501Y,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

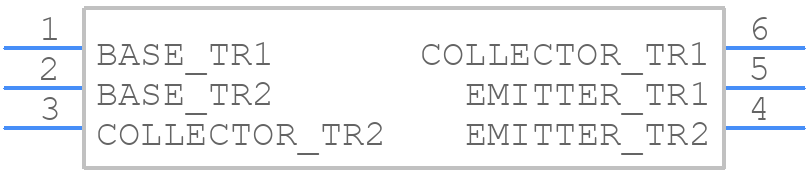

PMP4501Y,115 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PMP4501Y,115 - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT363-5
click to zoom
3D Models
PMP4501Y,115 - Nexperia - 3D model - SOT23 (6-Pin) - SOT363-5
click to zoom

PMP4501Y,115 Details

  • Manufacturer Part Number:

    PMP4501Y,115

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    SC-88, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT363

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    45 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Reference Standard:

    IEC-60134

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

PMP4501Y,115 Frequently Asked Questions (FAQs)

  • Nexperia recommends a PCB layout with a solid ground plane, minimal thermal vias, and a heat sink attached to the exposed pad. A 2-3 layer PCB with a thermal relief pattern is also recommended.
  • Ensure proper heat sinking, use a thermal interface material, and follow Nexperia's recommended thermal design guidelines. Also, consider derating the device's power dissipation at high temperatures.
  • The maximum allowed voltage on the enable pin (EN) is 6V, which is higher than the recommended operating voltage of 5V. However, it's essential to ensure the voltage on EN does not exceed the supply voltage (VIN) to prevent damage.
  • Yes, the PMP4501Y,115 is designed for high-current applications. However, it's crucial to ensure proper thermal management, follow Nexperia's recommended PCB layout, and derate the device's power dissipation according to the application's requirements.
  • The power-good (PG) output signal is an open-drain output. It's recommended to use a pull-up resistor to a voltage rail (e.g., 3.3V or 5V) to ensure proper operation. The PG signal can be used to monitor the output voltage and detect faults.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMP4501Y,115 Overview

Use the download button to access the PMP4501Y,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMP45, or try a keyword search, such as Small Signal Bipolar Transistors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
