PN5180A0HN/C2E - NXP

Description: RF Front End High-performance multi-protocol full NFC Forum-compliant frontend

Download PN5180A0HN/C2E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

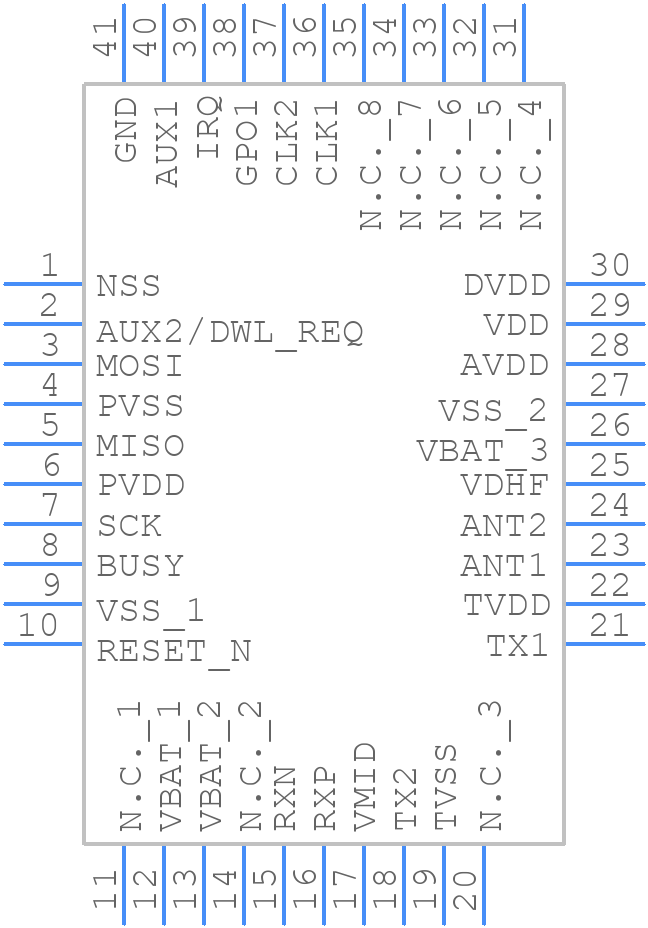

PN5180A0HN/C2E - NXP - PCB symbol
click to zoom
PCB Footprints
PN5180A0HN/C2E - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN-40
click to zoom
3D Models
PN5180A0HN/C2E - NXP - 3D model - Quad Flat No-Lead - HVQFN-40
click to zoom

PN5180A0HN/C2E Details

  • Manufacturer Part Number:

    PN5180A0HN/C2E

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    SOT618-1

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER

PN5180A0HN/C2E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the antenna is recommended. Keep the RF traces as short as possible and avoid vias under the IC. Refer to the NXP application note AN11916 for more details.
  • Ensure proper thermal management by providing adequate heat dissipation through a heat sink or thermal pad. Avoid operating the device in extreme temperatures (below -40°C or above 125°C) and follow the recommended storage conditions.
  • Use a 50-ohm antenna with a suitable radiation pattern. Optimize the antenna design for the target frequency band (e.g., 13.56 MHz for NFC). Perform impedance matching and tuning using a network analyzer or simulation tools to ensure optimal performance.
  • Use the device's built-in power-down modes (e.g., shutdown, hibernate) to minimize power consumption when not in use. Implement a power management strategy that balances power consumption with performance requirements. Refer to the datasheet for specific power-down mode details.
  • Implement a firmware that adheres to the NFC Forum specifications and follows the NXP-provided firmware examples. Ensure proper initialization, configuration, and error handling. Use a suitable software development kit (SDK) and follow the NXP-provided guidelines for firmware development.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PN5180A0HN/C2E Overview

Use the download button to access the PN5180A0HN/C2E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PN518, or try a keyword search, such as Other Telecom ICs
