PN5180A0HN/C2Y - NXP

Description: RFID Reader/Transponder IC 13.56MHz FeliCa, ISO 14443, ISO 15693, ISO 18000-3, ISO 18092, ISO 21481, MIFARE, NFC SPI, UART 2.7V ~ 5.5V 40-VFQFN Exposed Pad

Download PN5180A0HN/C2Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

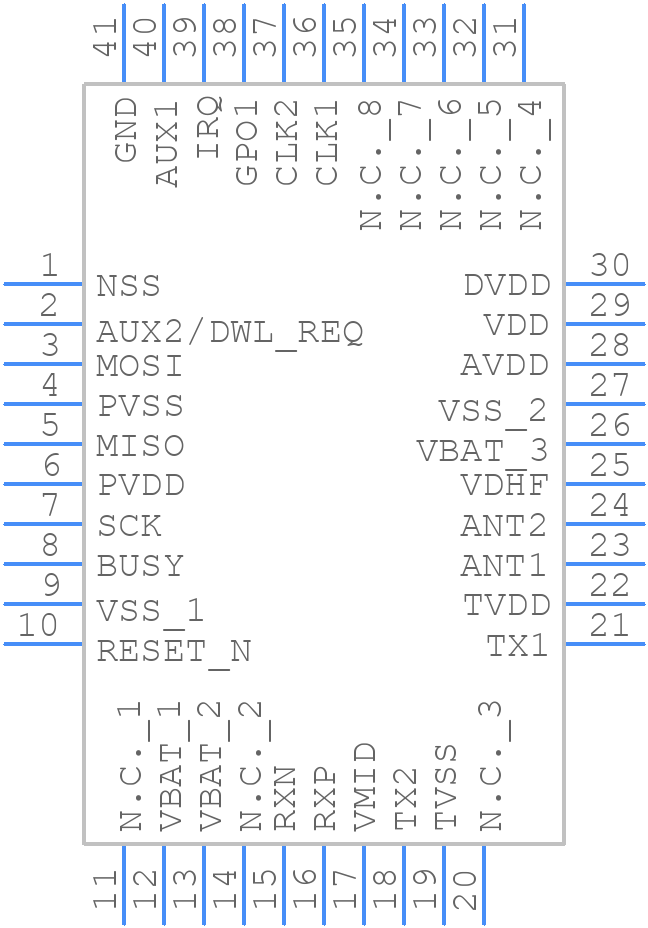

PN5180A0HN/C2Y - NXP - PCB symbol
click to zoom
PCB Footprints
PN5180A0HN/C2Y - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT618-1_2024
click to zoom
3D Models
PN5180A0HN/C2Y - NXP - 3D model - Quad Flat No-Lead - SOT618-1_2024
click to zoom

PN5180A0HN/C2Y Details

  • Manufacturer Part Number:

    PN5180A0HN/C2Y

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    SOT618-1

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • JESD-30 Code:

    S-PQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER

PN5180A0HN/C2Y Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the antenna is recommended. Keep the RF traces as short as possible and use a 50-ohm impedance matching network to ensure optimal performance.
  • Use a reliable communication protocol such as SPI or I2C, and ensure proper synchronization and data validation. Implement error handling and retries to ensure reliable data transfer.
  • The PN5180A0HN/C2Y has a maximum junction temperature of 125°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and avoid blocking airflow around the device.
  • Use a tuned antenna design with a resonant frequency of 13.56 MHz. Optimize the antenna size, shape, and orientation for the specific application. Use simulation tools or consult with an antenna design expert for optimal results.
  • The PN5180A0HN/C2Y has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly. Use ESD-safe materials and equipment to prevent damage.
