PN5180A0HN/C4Y - NXP

Description: RF Front End High-performance multi-protocol full NFC Forum-compliant frontend

Download PN5180A0HN/C4Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

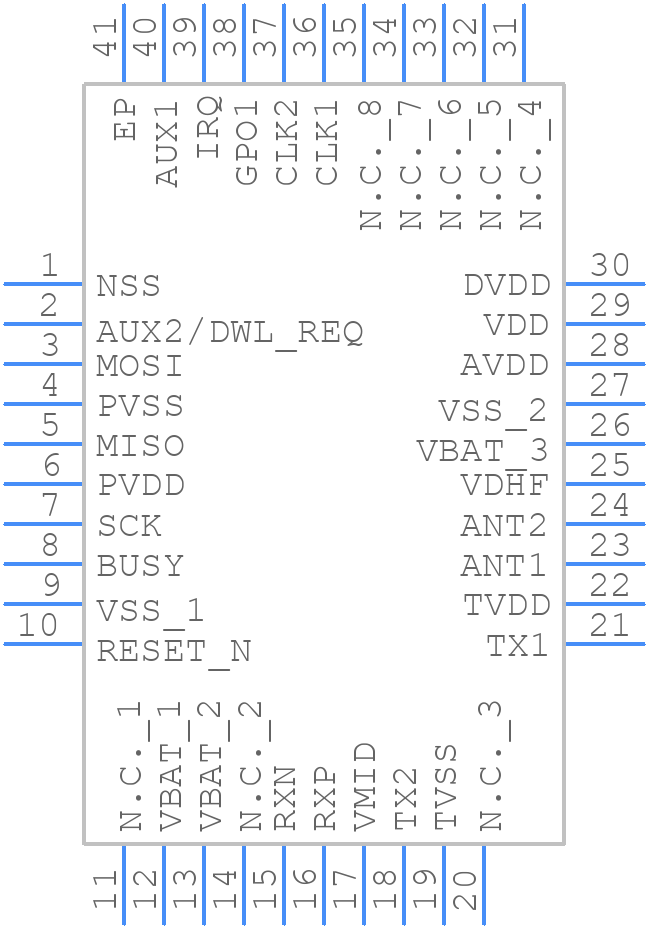

PN5180A0HN/C4Y - NXP - PCB symbol
click to zoom
PCB Footprints
PN5180A0HN/C4Y - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT618-1_2022
click to zoom
3D Models
PN5180A0HN/C4Y - NXP - 3D model - Quad Flat No-Lead - SOT618-1_2022
click to zoom

PN5180A0HN/C4Y Details

  • Manufacturer Part Number:

    PN5180A0HN/C4Y

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQFN-40

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2020-06-02

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.95 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER

PN5180A0HN/C4Y Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the antenna is recommended. Keep the RF traces as short as possible and avoid vias under the IC. Refer to the NXP application note AN11935 for more details.
  • Ensure proper thermal management by providing adequate heat dissipation through a heat sink or thermal pad. Avoid exposing the device to extreme temperatures during storage or operation.
  • Use a 50-ohm antenna with a suitable radiation pattern. Optimize the antenna design for the target frequency band and ensure proper impedance matching. Refer to the NXP application note AN11936 for antenna design guidelines.
  • Use a logic analyzer or oscilloscope to monitor the device's digital interfaces. Check the power supply voltage, clock signal, and reset pin functionality. Verify the antenna connection and impedance matching. Consult the NXP support resources and application notes for further guidance.
  • Ensure proper isolation and filtering between the PN5180A0HN/C4Y and other radios or antennas to prevent interference. Use a suitable filter or diplexer to separate the frequency bands. Consult the NXP application note AN11937 for coexistence guidelines.
