PN7150B0HN/C11002E - NXP

Description: High performance full NFC Forum-compliant controller with integrated firmware and NCI interface

Download PN7150B0HN/C11002E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

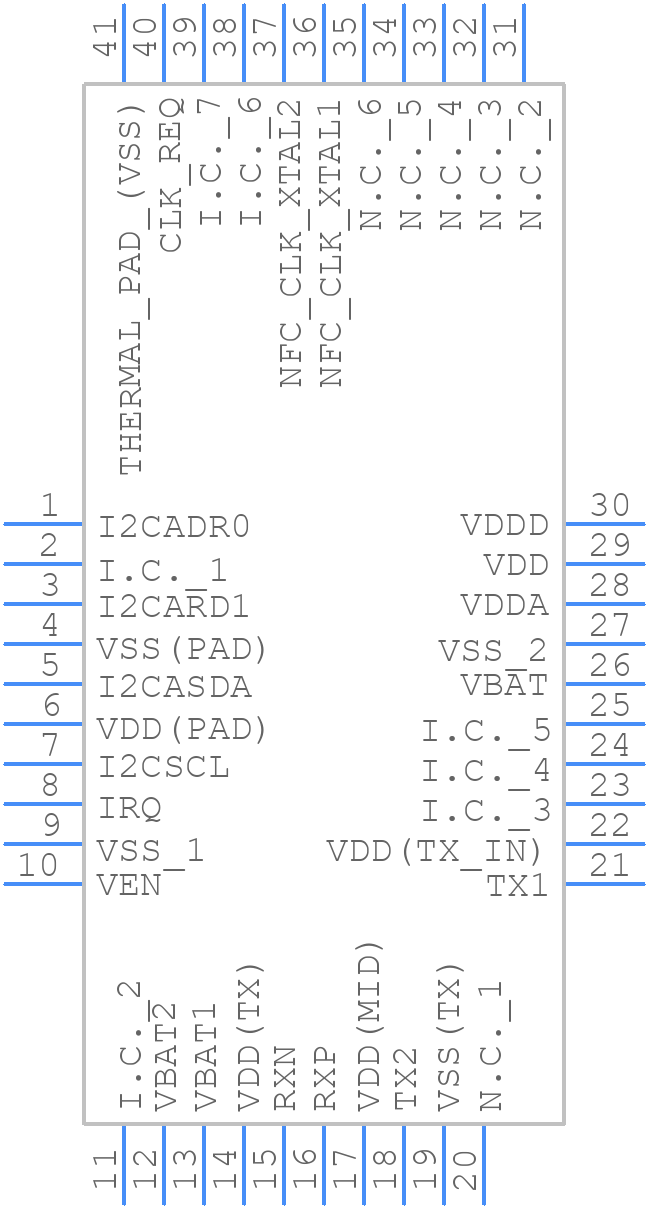

Symbol
PN7150B0HN/C11002E - NXP - PCB symbol
click to zoom
PCB Footprints
PN7150B0HN/C11002E - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT618-1
click to zoom
3D Models
PN7150B0HN/C11002E - NXP - 3D model - Quad Flat No-Lead - SOT618-1
click to zoom

PN7150B0HN/C11002E Details

  • Manufacturer Part Number:

    PN7150B0HN/C11002E

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    HVQFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    SOT618-1

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.95 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER

PN7150B0HN/C11002E Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow the PCB layout guidelines provided in the application note AN11835. Additionally, ensure proper thermal management by providing a heat sink or thermal pad to dissipate heat generated by the device.
  • For optimal antenna design, follow the guidelines provided in the application note AN11835. It's recommended to use a loop antenna with a diameter of 40-50 mm and a wire diameter of 0.5-1 mm. Also, ensure the antenna is placed at a distance of at least 5 mm from the PN7150B0HN/C11002E device.
  • To ensure stable operation, it's recommended to use a decoupling capacitor of 10-100 nF between the VDD and GND pins. Additionally, use a filter capacitor of 10-100 nF between the VDD and AVDD pins to reduce noise and ensure proper operation.
  • To implement secure firmware updates and secure boot mechanisms, use the Secure Firmware Update (SFU) feature provided by NXP. This feature ensures secure authentication and encryption of firmware updates. Additionally, use a secure boot mechanism such as Secure Boot and Chain of Trust to ensure the authenticity and integrity of the firmware.
  • For NFC applications, it's recommended to perform testing and validation using the NFC Forum's Analog Test Suite and Digital Test Suite. Additionally, perform testing for NFC tag emulation, peer-to-peer mode, and card emulation to ensure compliance with NFC specifications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PN7150B0HN/C11002E Overview

Use the download button to access the PN7150B0HN/C11002E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PN715, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
