PN7150B0HN/C11006Y - NXP

Description: NFC/RFID Tags & Transponders High performance NFC controller, supporting all NFC Forum modes, with integrated firmware and NCI interface.

Download PN7150B0HN/C11006Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

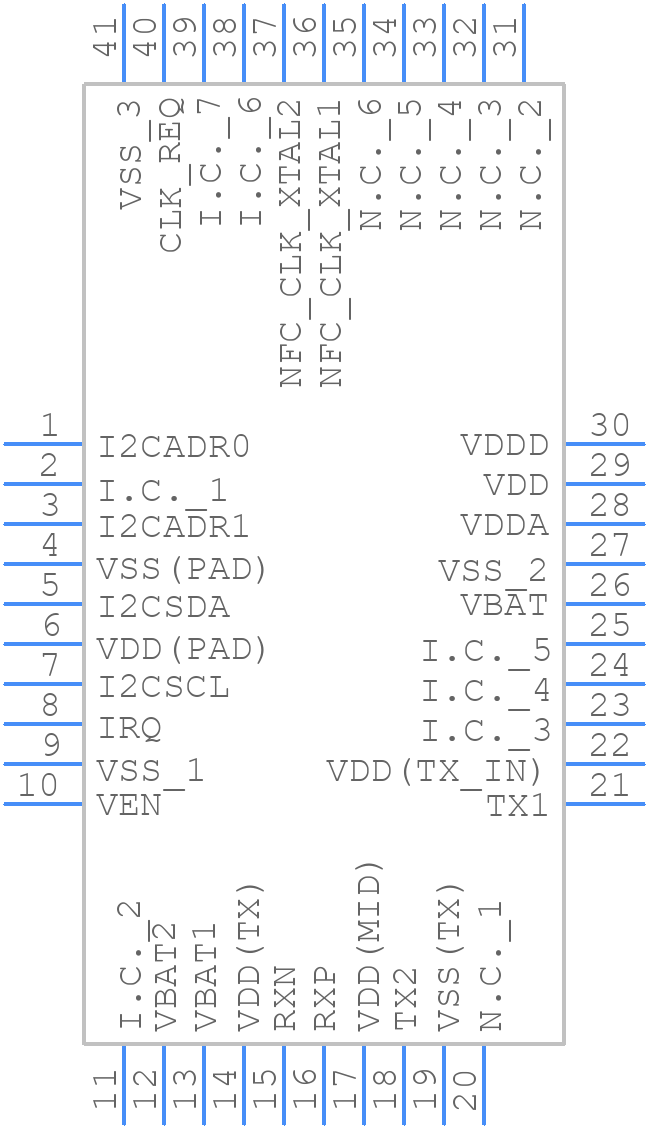

PN7150B0HN/C11006Y - NXP - PCB symbol
click to zoom
PCB Footprints
PN7150B0HN/C11006Y - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT618-1
click to zoom
3D Models
PN7150B0HN/C11006Y - NXP - 3D model - Quad Flat No-Lead - SOT618-1
click to zoom

PN7150B0HN/C11006Y Details

  • Manufacturer Part Number:

    PN7150B0HN/C11006Y

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    HVQFN-40

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.95 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER

PN7150B0HN/C11006Y Frequently Asked Questions (FAQs)

  • NXP recommends a 4-layer PCB with a solid ground plane, and thermal vias under the IC to dissipate heat. A thermal pad on the bottom of the IC should be connected to a large copper area on the PCB to improve heat dissipation.
  • NXP provides an application note (AN11536) that provides guidelines for antenna design and optimization. It's recommended to use a 50-ohm antenna and follow the design guidelines for optimal performance.
  • NXP recommends using a 10uF capacitor in parallel with a 100nF capacitor for power supply decoupling. Additionally, a pi-filter or a common-mode choke can be used to filter out noise and improve EMI performance.
  • NXP provides a secure boot mechanism using the ROM bootloader. For secure firmware updates, NXP recommends using a secure protocol such as HTTPS or COAP, and implementing secure authentication and encryption mechanisms.
  • The PN7150 has a low power consumption mode, but it's essential to consider the overall system power budget, including the MCU, sensors, and other components. NXP recommends using a power management IC to optimize power consumption and extend battery life.
