NXP provides a recommended PCB layout guide in their application note AN11529, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The PN7160B1HN/C100E has multiple power modes, including a low-power mode. To configure the device for low-power mode, refer to the device's datasheet and application notes, which provide detailed information on register settings, clock management, and power gating techniques to achieve low power consumption.
The PN7160B1HN/C100E has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink, thermal interface material, and optimizing the PCB design for heat dissipation. NXP provides thermal management guidelines in their application notes and datasheets.
To troubleshoot issues with the NFC interface, refer to NXP's application notes and troubleshooting guides, which provide detailed information on debugging techniques, error codes, and common issues. Additionally, use tools like oscilloscopes and logic analyzers to analyze the NFC signal and identify potential problems.
The PN7160B1HN/C100E has built-in security features, including secure boot, secure firmware updates, and cryptographic accelerators. NXP provides detailed information on the device's security features and implementation guidelines in their datasheets, application notes, and security documentation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PN7160B1HN/C100E Overview

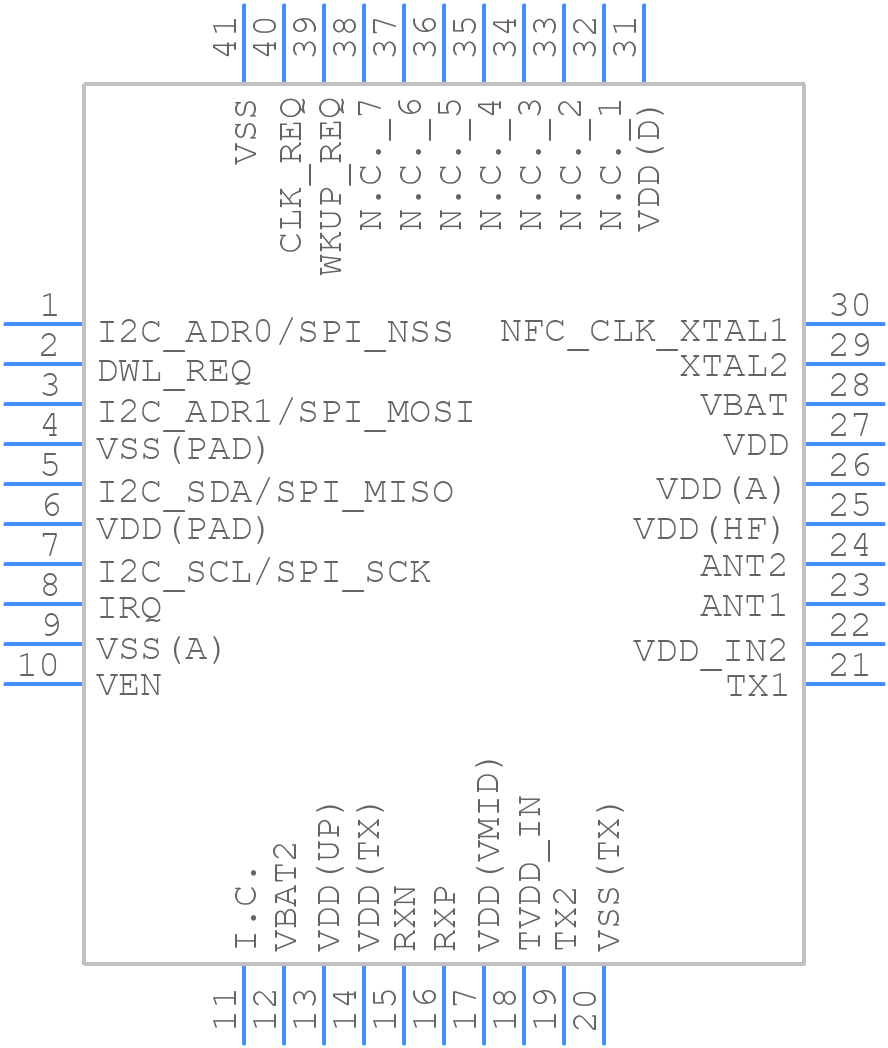

Use the download button to access the PN7160B1HN/C100E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PN716,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
