PNP300JR-73-2K2 - Yageo Group

Description: Wirewound Resistors - Through Hole 2.2K ohm 3W 5%

Download PNP300JR-73-2K2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PNP300JR-73-2K2 - Yageo Group - PCB symbol
click to zoom

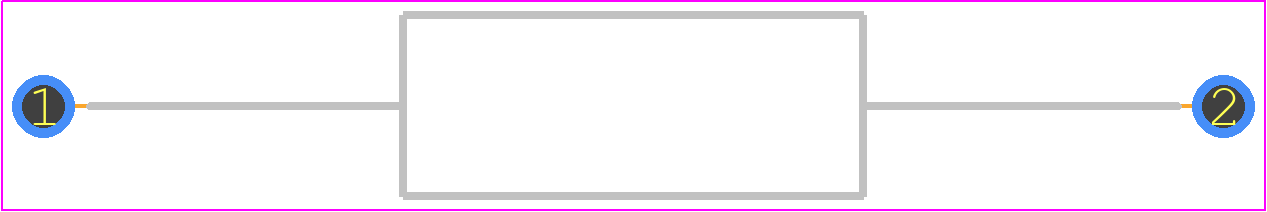

PCB Footprints
PNP300JR-73-2K2 - Yageo Group PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - PNP300JR-73-2K2
click to zoom
3D Models
PNP300JR-73-2K2 - Yageo Group - 3D model - Resistors, Axial Diameter Horizontal Mounting - PNP300JR-73-2K2
click to zoom

PNP300JR-73-2K2 Details

  • Manufacturer Part Number:

    PNP300JR-73-2K2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.80

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    10

  • Construction:

    Cylindrical

  • Lead Diameter:

    0.8 mm

  • Lead Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Diameter:

    4.5 mm

  • Package Length:

    11.5 mm

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    TR

  • Rated Power Dissipation (P):

    3 W

  • Resistance:

    2200 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    WIRE WOUND

  • Temperature Coefficient:

    300 ppm/°C

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

  • Working Voltage:

    300 V

PNP300JR-73-2K2 Frequently Asked Questions (FAQs)

  • The operating temperature range of PNP300JR-73-2K2 is -55°C to 125°C.
  • Yes, PNP300JR-73-2K2 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The power rating of PNP300JR-73-2K2 is 300mW.
  • While PNP300JR-73-2K2 is a general-purpose resistor, it's not recommended for high-frequency applications above 100 kHz due to its inductive properties. For high-frequency applications, consider using a thin-film resistor or a specialized high-frequency resistor.
  • Handle PNP300JR-73-2K2 by the body, not the leads, to prevent damage. Use a soldering iron with a temperature below 260°C and avoid applying excessive force or bending the leads.
