Bourns provides a recommended PCB layout in their application note AN16, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its specified operating temperature range (–40°C to +85°C for the POE025-PD13120S).
The POE025-PD13120S is designed to operate with standard PoE input voltages (37V to 57V). Using a non-standard input voltage may affect the device's performance, efficiency, and reliability. It's recommended to consult with Bourns' application engineers to determine the feasibility of using a non-standard input voltage and to discuss any necessary modifications or custom designs.
While the POE025-PD13120S is designed for PoE applications, it can be used in non-PoE applications with some modifications. However, this would require careful evaluation of the device's specifications, such as input voltage range, output voltage, and current capabilities, to ensure compatibility with the target application. It's recommended to consult with Bourns' application engineers to discuss the feasibility of using this device in a non-PoE application.
The POE025-PD13120S is designed to meet various EMI and EMC standards, such as CISPR 22 and EN 55022. To ensure compliance with these standards, it's essential to follow proper PCB layout and design practices, use adequate shielding and filtering, and perform thorough EMI and EMC testing during the product development process.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
POE025-PD13120S Overview

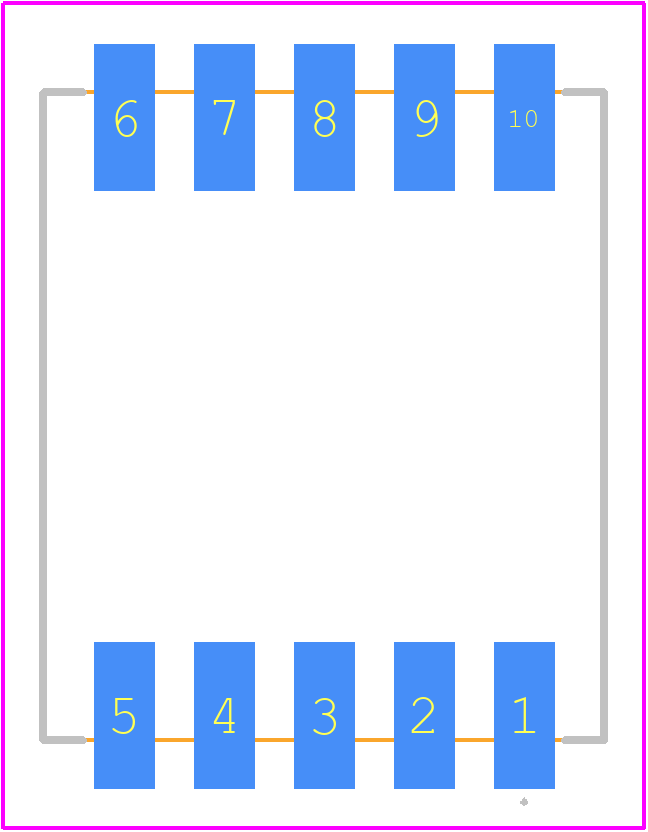

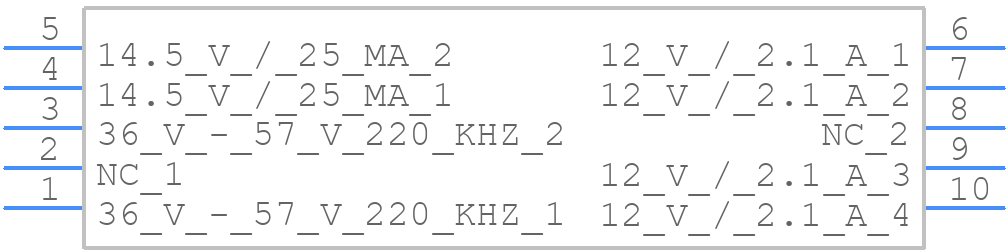

Use the download button to access the POE025-PD13120S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like POE02,
or try a keyword search, such as SMPS Transformers
