POE30P-33L footprint, schematic symbol and 3D model by COILCRAFT

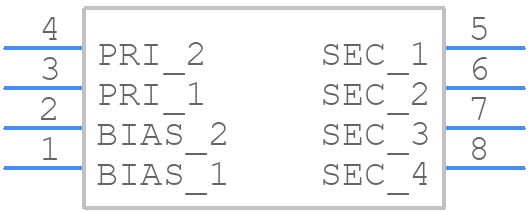

Symbol

click to zoom

PCB Footprints

POE30P-33L - COILCRAFT PCB footprint - Other - Other - POE30P-33L-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for POE30P-33L
Part Number POE30P-33L
Manufacturer COILCRAFT
Pin Count 8
Part Category Transformer
Package Category Other
Footprint Name Other - POE30P-33L-2
Released Date Jun 14, 2023
Last Modified Date Jun 14, 2023 4:26 AM UTC
Pinout / Pin List Click Here (Member Only)

POE30P-33L Details

Manufacturer Part Number:
POE30P-33L
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.31
Additional Feature:
TURNS RATIO: 1:0.19;1:0.70, LENGTH AND HEIGHT DIM INCLUDE TERMINAL ALSO
Height:
9.02 mm
Input Voltage-Max:
72 V
Input Voltage-Min:
36 V
Length:
13.21 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
2
Number of Secondary Winding:
1
Operating Frequency-Max:
250 kHz
Output Voltage 1:
3.3 V
Power Rating:
3 W
Primary Inductance:
310 µH
Surface Mount:
YES
Terminal Finish:
Tin/Silver - Tin - with Nickel barrier
Transformer Type:
SMPS TRANSFORMER
Width:
10.92 mm

POE30P-33L Frequently Asked Questions (FAQs)

Coilcraft recommends a symmetrical PCB layout with a solid ground plane and a minimum of 10 mils (0.25 mm) clearance around the part to ensure optimal performance and minimize electromagnetic interference (EMI).
While the POE30P-33L is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management in your design to ensure reliable operation. Coilcraft recommends consulting their application notes and thermal modeling tools for guidance.
Coilcraft's POE30P-33L meets various safety and regulatory standards, including UL, IEC, and RoHS. However, it's crucial to review the specific requirements for your application and consult with Coilcraft's technical support team to ensure compliance.
Coilcraft recommends storing the POE30P-33L in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handling should be done with electrostatic discharge (ESD) precautions, such as using wrist straps or mats, to prevent damage.
While the POE30P-33L is designed to be robust, it's essential to consider the mechanical stress and vibration requirements for your specific application. Coilcraft recommends consulting their mechanical stress testing data and application notes for guidance on ensuring reliable operation in harsh environments.

Trust Checks

Community Provided

System Verified

Community Approved

POE30P-33L Overview

Use the download button to access the POE30P-33L schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like POE30, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
