POE30P-50LD - COILCRAFT

Description: Audio Transformers / Signal Transformers POE30P Flyback PoE 3uH 5.0 V 0.6 A

Download POE30P-50LD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

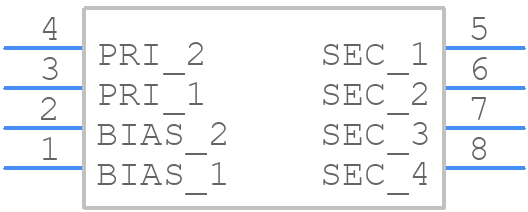

Symbol
POE30P-50LD - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
POE30P-50LD - COILCRAFT PCB footprint - Other - Other - POE30P-50LD-2
click to zoom
3D Models
POE30P-50LD - COILCRAFT - 3D model - Other - POE30P-50LD-2
click to zoom

POE30P-50LD Details

  • Manufacturer Part Number:

    POE30P-50LD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.31

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINAL ALSO

  • Height:

    9.02 mm

  • Input Voltage-Max:

    72 V

  • Input Voltage-Min:

    36 V

  • Length:

    10.92 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Operating Frequency-Max:

    250 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    5 V

  • Packing Method:

    TAPE & REEL

  • Power Rating:

    3 W

  • Primary Inductance:

    310000 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver - Matte Tin - with Nickel barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    8.6 mm

POE30P-50LD Frequently Asked Questions (FAQs)

  • Coilcraft recommends a symmetrical layout with the inductor centered on the PCB, and the pads should be at least 0.5 mm from the edge of the board to minimize radiation.
  • Use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder to the pads. Avoid applying excessive heat or pressure, which can damage the component.
  • The maximum current rating for the POE30P-50LD is 3.5 A, but it's recommended to derate the current based on the operating temperature and other environmental factors.
  • The POE30P-50LD is rated for operation up to 125°C, but the inductance and DCR may vary with temperature. Consult the datasheet for temperature derating curves.
  • Use a shielded enclosure or a metal can to minimize radiation. Keep the inductor away from sensitive components and use a common-mode choke or ferrite bead to filter EMI.
