POE51Q-24ED - COILCRAFT

Description: Audio Transformers / Signal Transformers Flyback PoE 51W 22.2uH 24V 4.7A

Download POE51Q-24ED Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

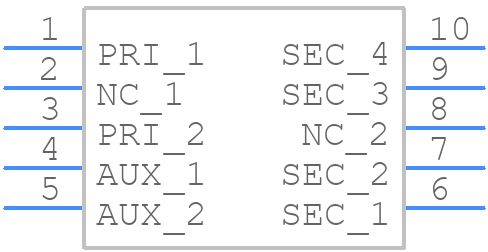

Symbol
POE51Q-24ED - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
POE51Q-24ED - COILCRAFT PCB footprint - Other - Other - POE51Q-24ED-4
click to zoom
3D Models
POE51Q-24ED - COILCRAFT - 3D model - Other - POE51Q-24ED-4
click to zoom

POE51Q-24ED Details

  • Manufacturer Part Number:

    POE51Q-24ED

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.45

  • Additional Feature:

    FLYBACK

  • Approvals:

    AEC-Q200

  • Height:

    14 mm

  • Input Voltage-Max:

    57 V

  • Input Voltage-Min:

    36 V

  • Length:

    14.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    24 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Power Rating:

    51 W

  • Primary Inductance:

    22.2 µH

  • Surface Mount:

    YES

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    13 mm

POE51Q-24ED Frequently Asked Questions (FAQs)

  • Coilcraft recommends a symmetrical PCB layout with a solid ground plane, and keeping the component away from high-current carrying traces. A 4-layer PCB with a dedicated power plane is also recommended.
  • The POE51Q-24ED is designed to minimize high-frequency noise and EMI. It has a shielded construction and a ferrite core, which helps to reduce radiated emissions and improve immunity to external noise.
  • The POE51Q-24ED is rated for operation from -40°C to +125°C, making it suitable for a wide range of industrial and commercial applications.
  • Yes, the POE51Q-24ED is designed and manufactured to meet the requirements of high-reliability and safety-critical applications, such as aerospace, defense, and medical devices.
  • Coilcraft recommends storing the POE51Q-24ED in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static precautions, and the component should be kept away from mechanical stress and vibration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

POE51Q-24ED Overview

Use the download button to access the POE51Q-24ED schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like POE51, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
