POE51Q-50ED footprint, schematic symbol and 3D model by COILCRAFT

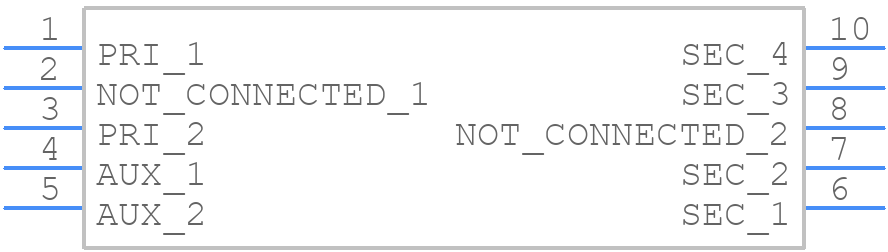

Symbol

click to zoom

PCB Footprints

POE51Q-50ED - COILCRAFT PCB footprint - Other - Other - POE51Q-50ED-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for POE51Q-50ED
Part Number POE51Q-50ED
Manufacturer COILCRAFT
Pin Count 10
Part Category Transformer
Package Category Other
Footprint Name Other - POE51Q-50ED-3
Released Date Feb 21, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

POE51Q-50ED Details

Manufacturer Part Number:
POE51Q-50ED
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.45
Additional Feature:
FLYBACK
Approvals:
AEC-Q200
Height:
14 mm
Input Voltage-Max:
57 V
Input Voltage-Min:
36 V
Length:
14.5 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
1
Number of Secondary Winding:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
5 V
Packing Method:
TR, EMBOSSED PLASTIC, 13 INCH
Power Rating:
51 W
Primary Inductance:
26.7 µH
Surface Mount:
YES
Transformer Type:
SMPS TRANSFORMER
Width:
13 mm

POE51Q-50ED Frequently Asked Questions (FAQs)

Coilcraft recommends a symmetrical PCB layout with a solid ground plane, and keeping the component away from high-current carrying traces. A 4-layer PCB with a dedicated power plane is also recommended.
The POE51Q-50ED is designed to minimize EMI and high-frequency noise. It has a shielded construction and a ferrite core, which helps to reduce radiation and absorption of electromagnetic energy.
The POE51Q-50ED is rated for operation from -40°C to +125°C, making it suitable for a wide range of industrial and commercial applications.
Yes, the POE51Q-50ED is designed to withstand high-vibration environments. It has a rugged construction and is tested to meet the requirements of IEC 60068-2-6 (vibration) and IEC 60068-2-27 (shock).
Coilcraft recommends storing the POE51Q-50ED in a dry, cool place, away from direct sunlight and moisture. Handling should be done with electrostatic discharge (ESD) precautions, and the component should not be bent or flexed excessively.

Trust Checks

Community Provided

System Verified

Community Approved

POE51Q-50ED Overview

Use the download button to access the POE51Q-50ED schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like POE51, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
